Side View Mirror

SIDE VIEW MIRROR

REMOVAL

1. Using a trim stick C-4755 or equivalent, move the front door frame molding.
2. Remove door trim panel and water dam. Refer to Front Door Panel.

Fig. 29:

3. Disconnect the electrical connector, if equipped (Fig. 29).

Fig. 30:

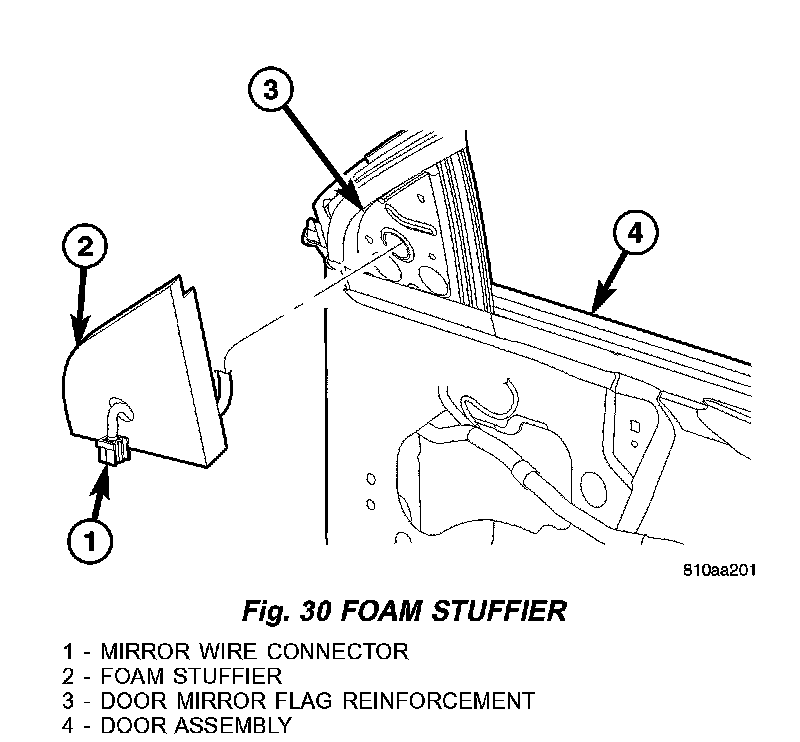

4. Using a trim stick or equivalent, remove the mirror flag stuffier. (Fig. 30).

Fig. 31:

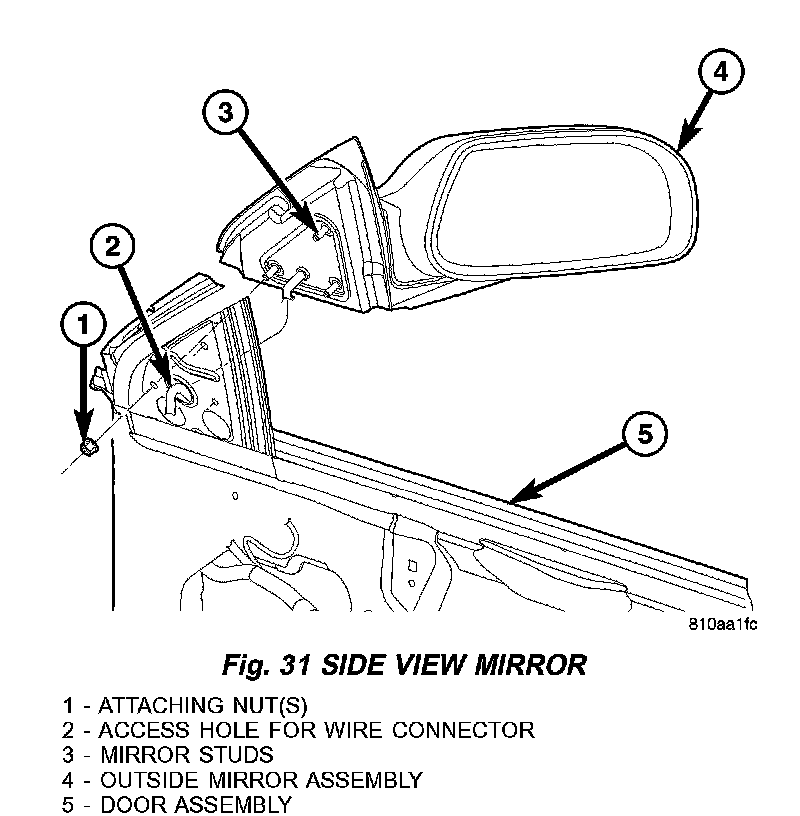

5. Remove the nuts attaching mirror (Fig. 31). 6.Remove the mirror from the door.

INSTALLATION

1. Place outside mirror in position.
2. Install nuts attaching mirror to door (Fig. 31).
3. Install mirror flag stuffier into position (Fig. 30).
4. Connect the electrical connector, if equipped (Fig. 29).
5. Verify proper mirror operation.
6. Install front door trim panel.
7. Install front door frame molding.
