Driver Seat Switch

Driver Seat Switch Testing:

1. Remove the driver seat switch assembly, refer to following removal procedure.
2. Using an ohmmeter, check the appropriate ground circuit cavity of the driver seat switch connector for continuity to ground. It should be present, If OK go to Step 3 , If NOT OK repair the open ground circuit as required.
3. Using an voltmeter, check the appropriate 12v circuit cavity of the power seat switch connector for approx. 12v. It should be present, If OK go to Step 4 , If NOT OK repair the open voltage supply circuit as required.

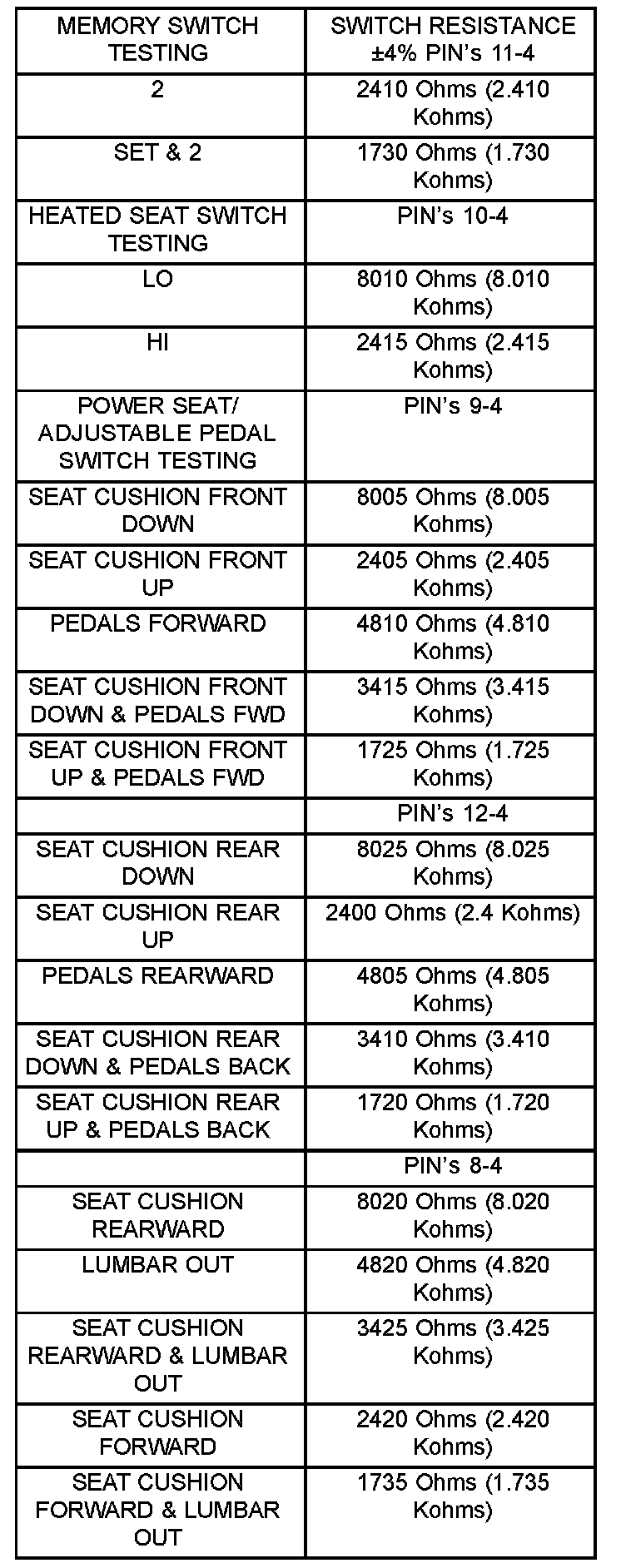

4. Using an ohmmeter, verify the Seat Switch resistance values, using the seat switch connector receptacle. If the values are not within spec. replace the driver seat switch.
