Hood Weatherstrip: Service and Repair
HOOD SEALREMOVAL 1.
Open
hood.

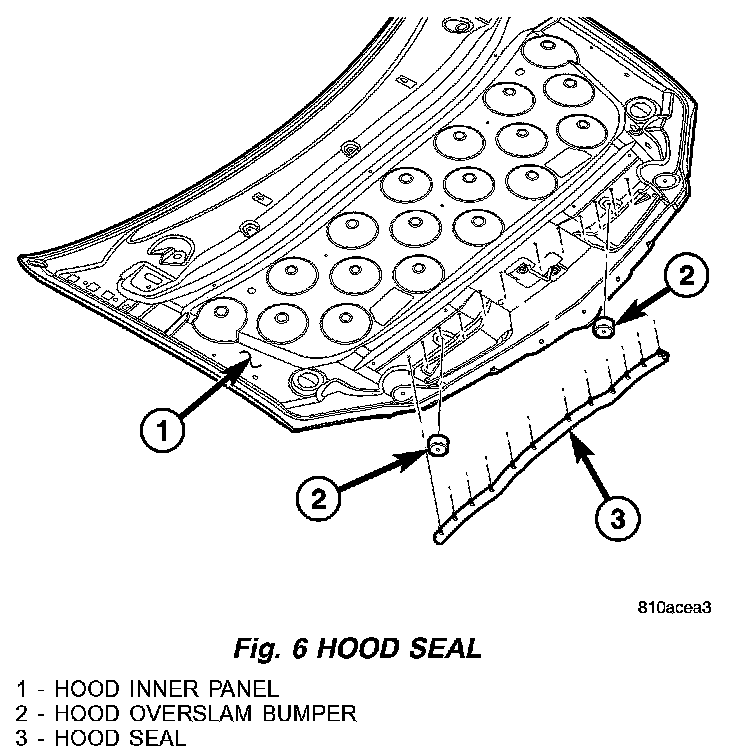

Fig. 6:
2.
Remove
hood seal (Fig. 6).
3.
Using a trim stick C-4755 or equivalent, disengage the
hood seal push pins from the hood.
INSTALLATION 1.
Place
hood seal into position (Fig. 6).
2.
Press
hood seal push pins till locked into position in hood.
3.
Close
hood.
