Cruise Control Vacuum Reservoir: Service and Repair

REMOVAL
1. Disconnect the negative and then the positive battery cable.
2. Remove battery.
3. Disconnect the wiring harness from battery tray.

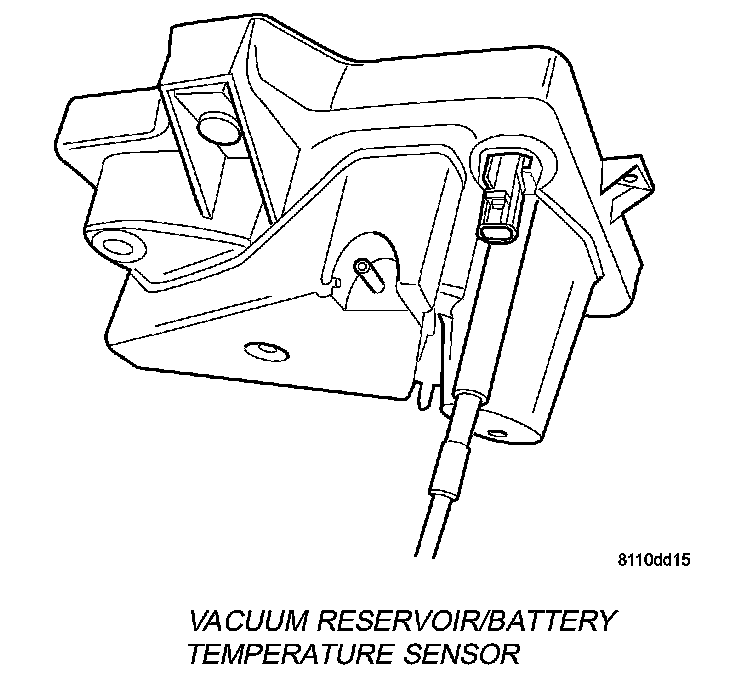

Vacuum Reservoir/Battery Temperature Sensor:

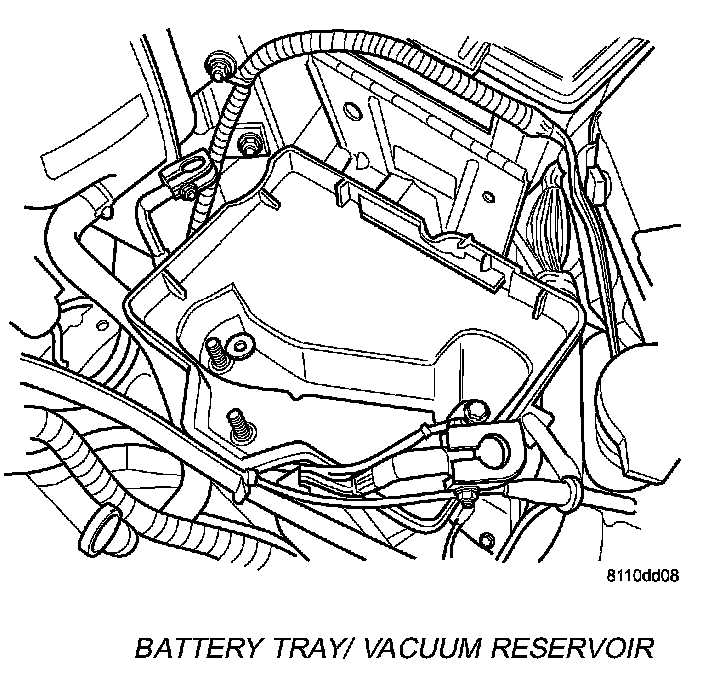

4. Remove the battery tray.

Vacuum Reservoir/Battery Temperature Sensor:




5. Disconnect the vacuum line from battery tray/ vacuum reservoir.

INSTALLATION
1. Connect the vacuum line to battery tray/vacuum reservoir .
2. Install the battery tray.
3. Connect the wiring harness to battery tray.
4. Install battery.
5. Connect the positive and then the negative battery cable.
