Floor Distribution Ducts Replacement

REMOVAL
1. Remove the center console assembly to access the front floor distribution duct assembly.
2. Remove the floor distribution duct screws.
3. Pull the floor distribution duct assembly rearward far enough to disengage the floor distribution duct from the outlet on the bottom of the heater-A/C housing unit.

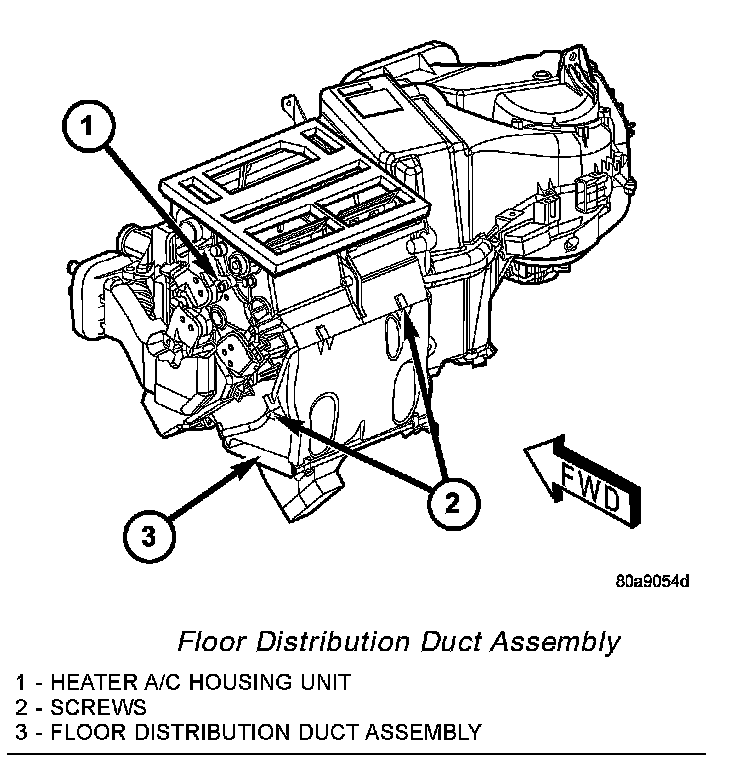

Floor Distribution Duct Assembly:

4. Remove the floor distribution duct assembly.

INSTALLATION
1. Position the floor distribution duct assembly under the instrument panel center stack and engage the center floor distribution duct with the outlet on the bottom of the heater-A/C housing unit.
2. Install the floor distribution duct screws. Tighten screws to 2 Nm (17 in.lbs.).
3. Reinstall the center console assembly.
