Backup Lamp: Service and Repair
REMOVAL 1.
Remove the
tail lamp unit.

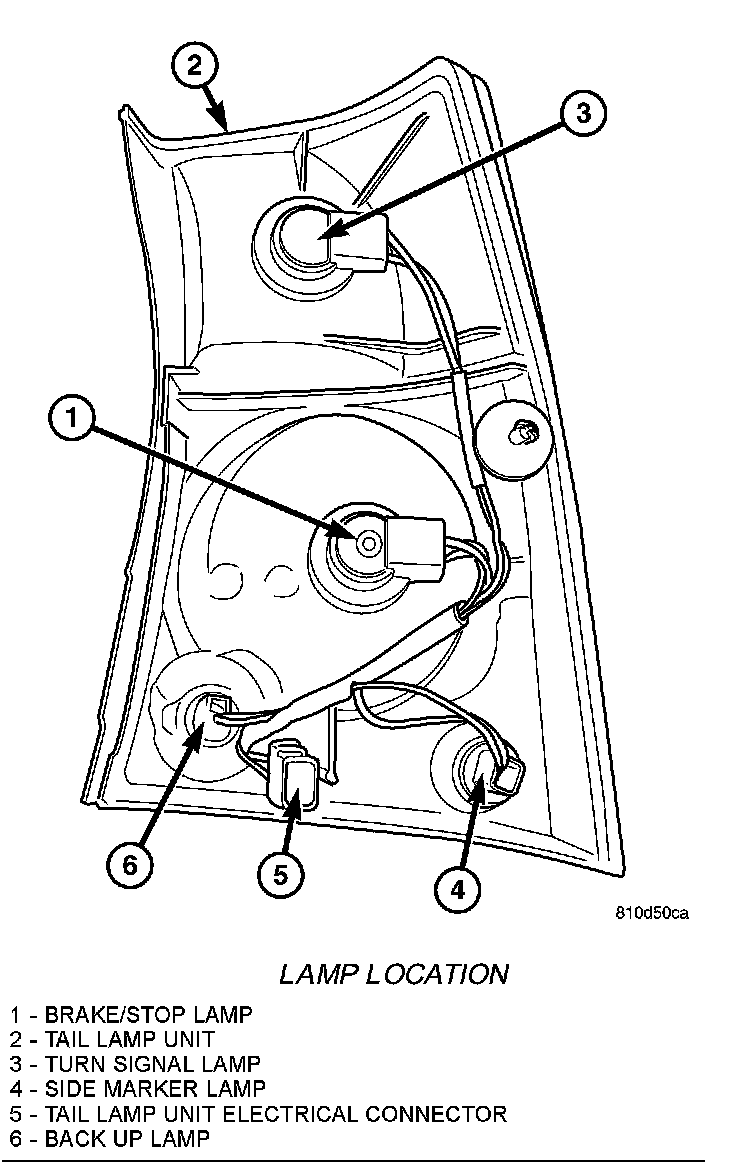

Lamp Location:
2.
Twist counterclockwise and pull out lamp from
tail lamp unit.
3.
Pull lamp straight out of lamp socket.
INSTALLATION 1.
Push lamp straight into lamp socket.
2.
Place lamp into
tail lamp unit and then twist clockwise until lamp stops (about 1/4 turn).
3.
Install the
tail lamp unit.
