Courtesy Lamp: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.

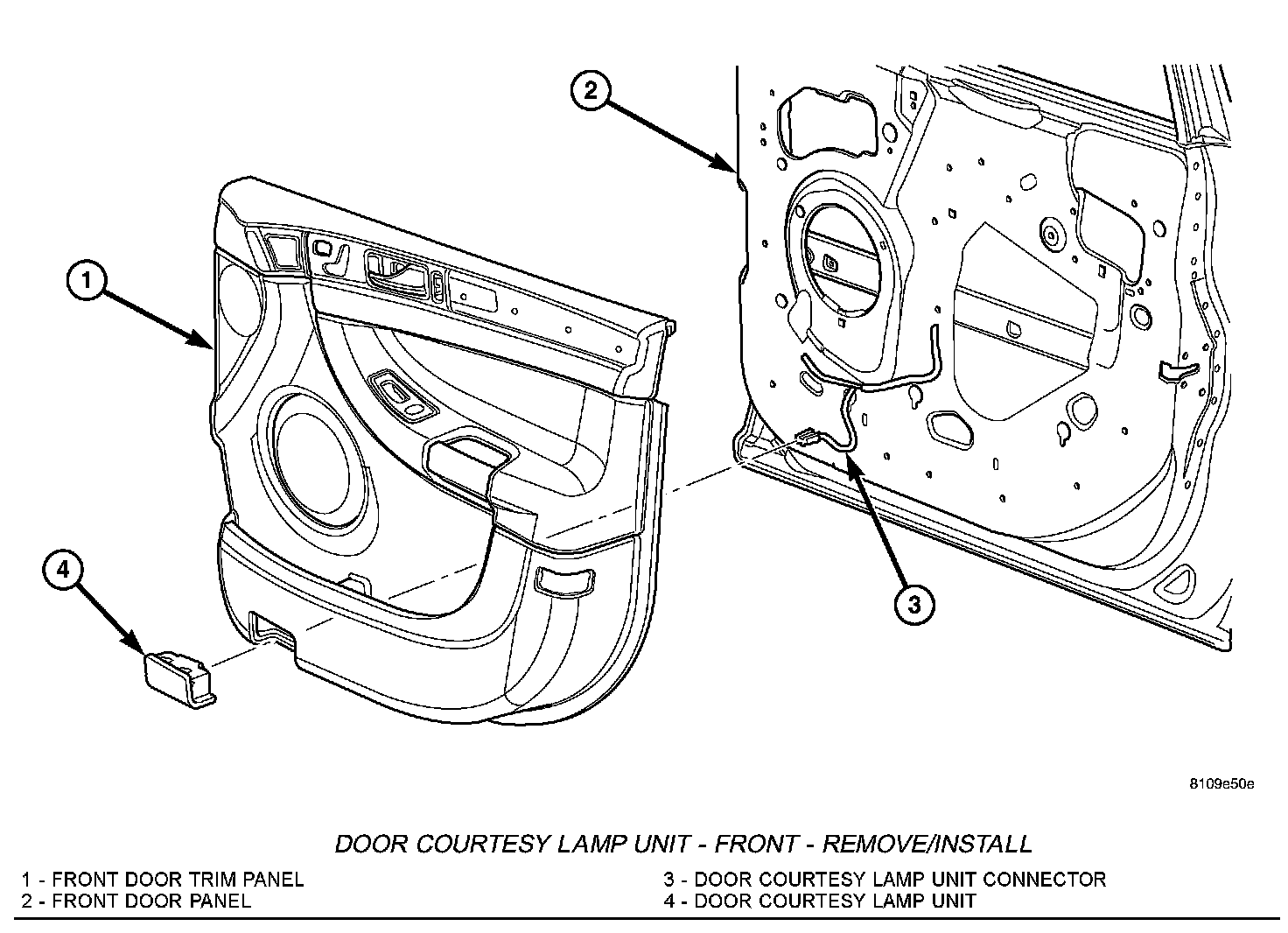

Door Courtesy Lamp Unit - Front -remove/Install:




2. Remove the front door trim panel.

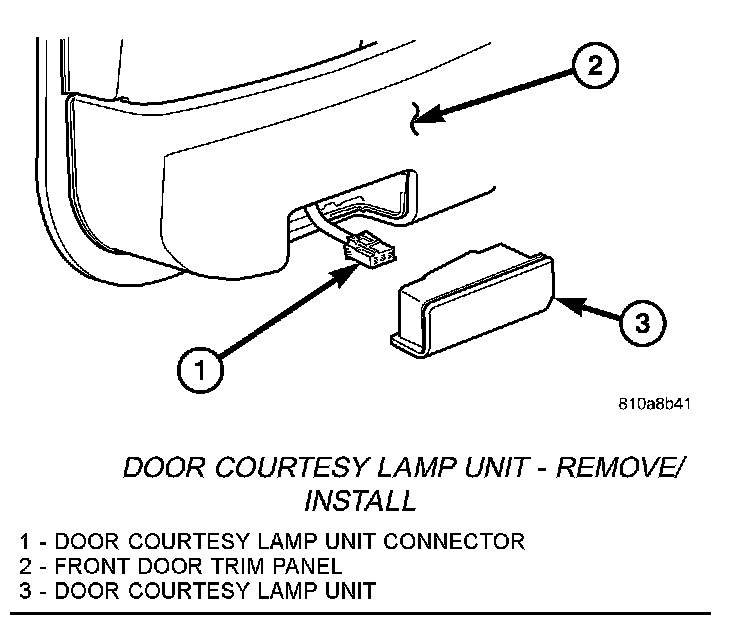

Door Courtesy Lamp Unit - Remove/Install:




3. With the trim panel on the bench, push in on the side retaining clips of the door courtesy lamp unit and push through trim panel to remove.

INSTALLATION
1. Align the door courtesy lamp unit in the door trim panel opening and firmly snap into place.
2. Install the front door trim panel.
3. Connect the battery negative cable.
4. Verify vehicle and system operation.
