Dimmer Switch: Service and Repair

REMOVAL

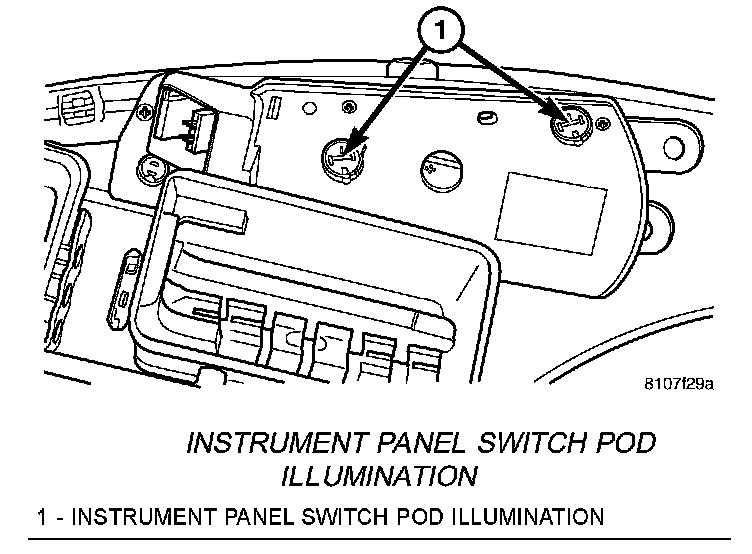

Instrument Panel Switch Pod Illumination:




The Instrument Panel Switch Pod has two illumination lamps. If found to be faulty, the entire cluster bezel must be removed. The Light Emitting Diodes (LED's) are serviceable by turning 1/4 turn counterclockwise to remove. The cluster bezel must first be removed to service the LED's.

INSTALLATION
1. Place Light Emitting Diode (LED) into lamp opening in instrument panel switch pod.
2. Turn 1/4 turn clockwise.
3. Install Cluster bezel.
4. Verify vehicle and system operation.
