Fog/Driving Lamp: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.

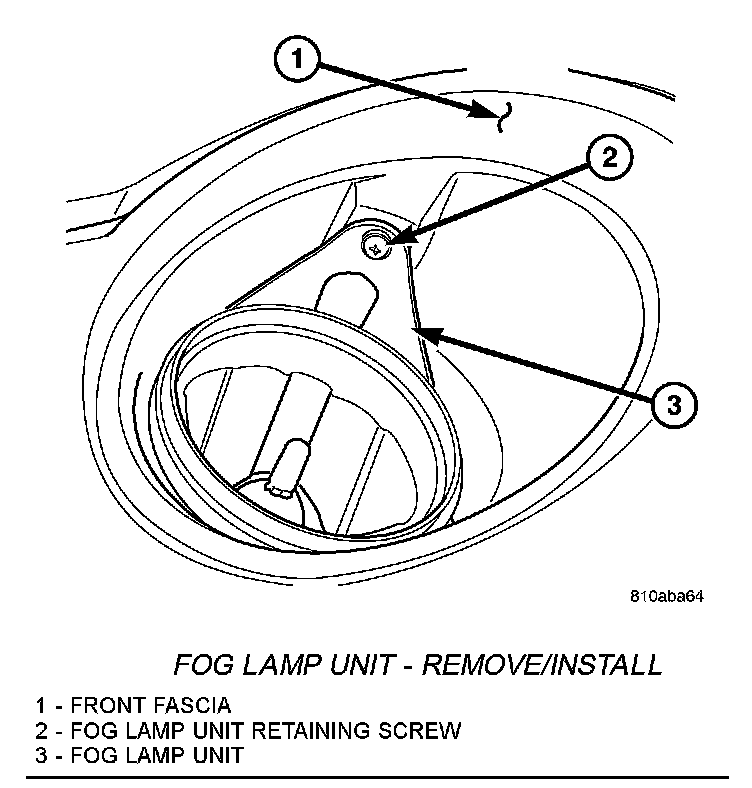

Fog Lamp Unit - Remove/Install:

2. Remove the one retaining screw from the underside of the fascia in the fog lamp opening .
3. Pull fog lamp unit straight out of front fascia.
4. Disconnect the electrical connection to the fog lamp and separate from vehicle.

If replacing fog lamp unit with new, the fog lamp must be transferred to the new unit.

INSTALLATION
If replacing fog lamp unit with new, the fog lamp must be transferred to the new unit.

CAUTION: Do not touch the glass of fog lamps with fingers or other possibly oily surface. Reduced lamp life will result.

1. Connect the electrical connection to the fog lamp.

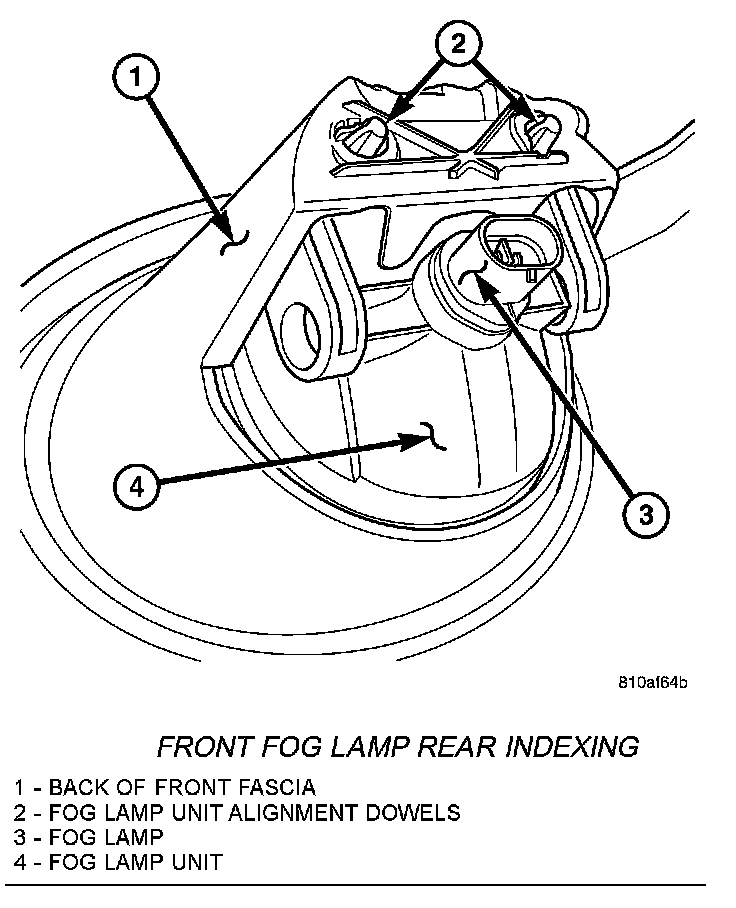

Front Fog Lamp Rear Indexing:

2. Make sure as you install the fog lamp unit into the fascia, the rear indexing dowels are properly lined up.
3. Push the fog lamp unit straight into the front fascia.
4. Install one retaining screw to the underside of the fascia in the fog lamp opening.
5. Connect the battery negative cable.
6. Verify vehicle and system operation
7. Close hood.
