Manifold Pressure/Vacuum Sensor: Service and Repair
REMOVAL 1.
Remove the negative battery cable.
2.
Disconnect the electrical connector from the
[1][2]MAP sensor.
3.
Remove bolt from sensor.
4.
Remove sensor.

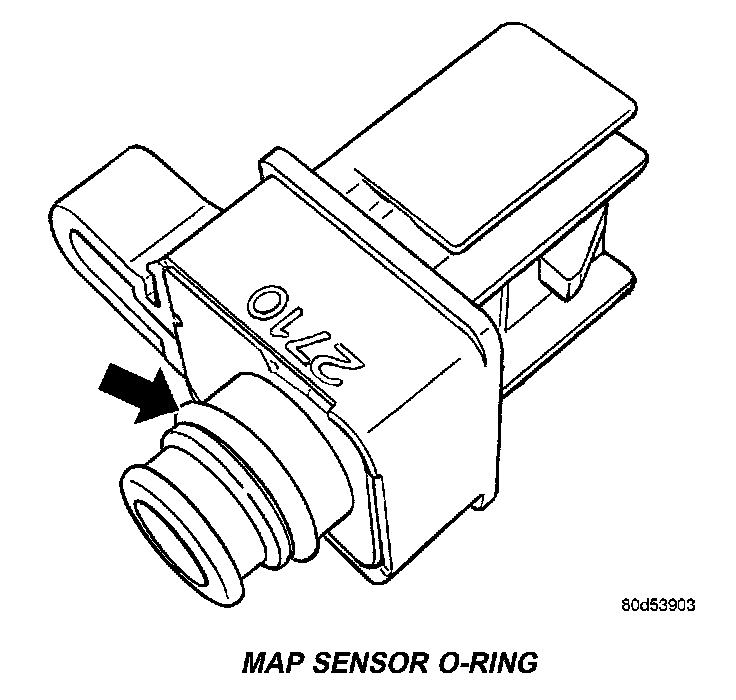

INSTALLATIONMap Sensor O-ring:
1.
The sensor mounts onto intake manifold plenum. Tighten screws to
4.5 N-m (40 in. lbs.) torque.
2.
Attach electrical connector to sensor.
3.
Install the negative battery cable.
