Ignition Coil Capacitor
REMOVAL 1.
Disconnect the negative battery cable.
2.
Remove the electrical connector from capacitor.

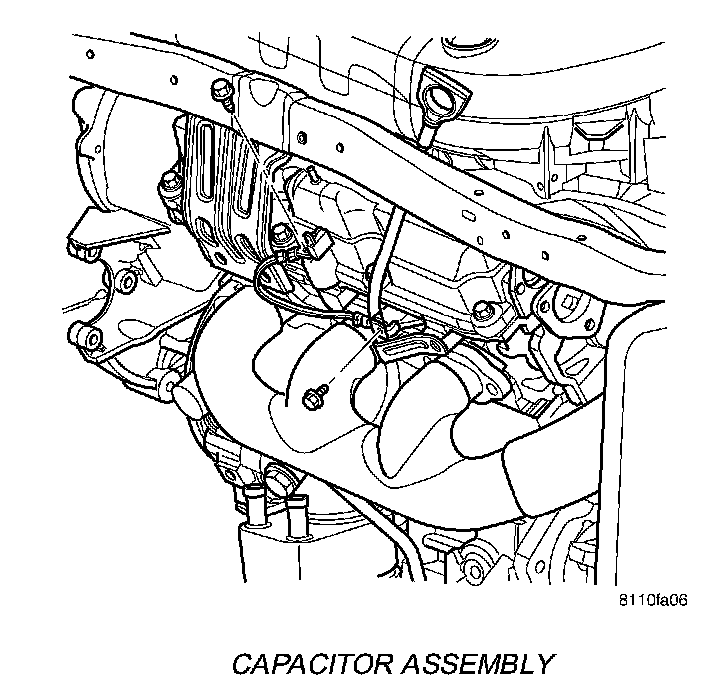

Capacitor Assembly:
3.
Remove the bolt from capacitor.
4.
Remove capacitor.
INSTALLATION 1.
Install the bolt to capacitor. Make sure that the ground strap is in place.
2.
Tighten bolt.
3.
Install the electrical connector to capacitor.
4.
Connect the negative battery cable.
