Oil Pan, Engine

Oil Pan Bolt Torque and Sequence
M6 Bolts 12 Nm (105 inch lbs.)
M8 Bolts 28 Nm (250 inch lbs.)

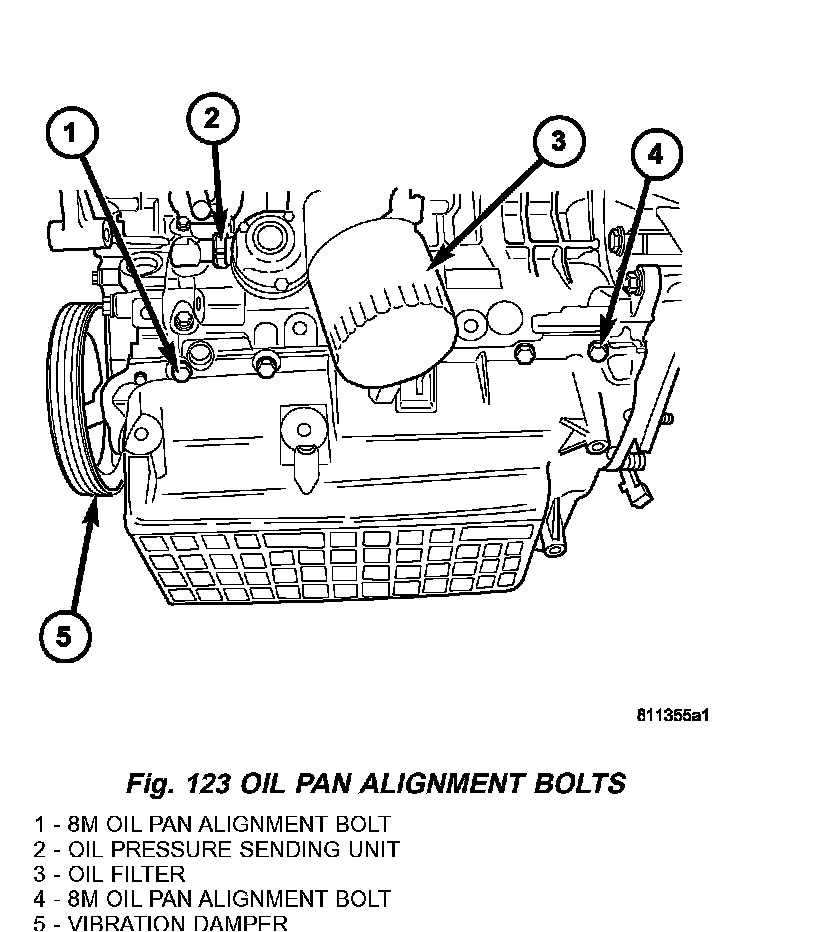

First tighten the M8 oil pan alignment bolts
Tighten the remaining M6 bolts and M8 bolts
