Alternator Pulley / Clutch: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.
2. Remove the air cleaner box.

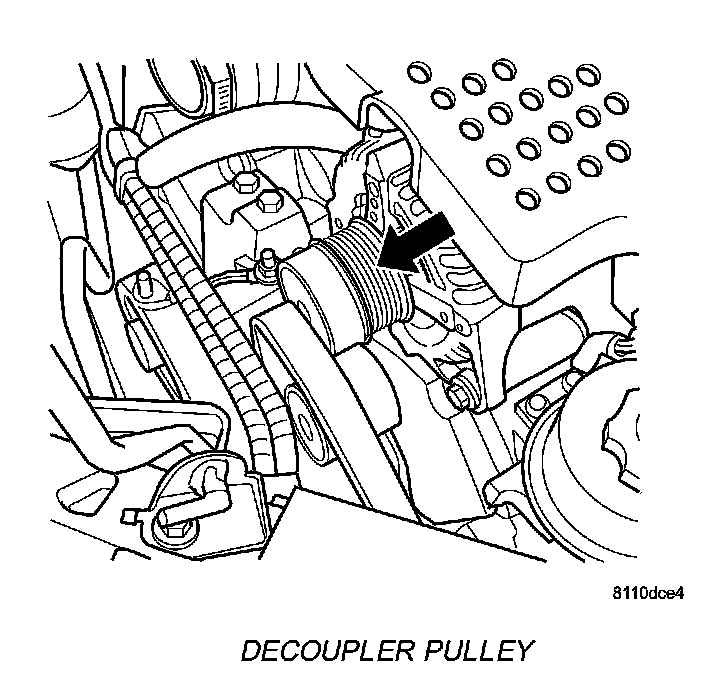

Decoupler Pulley:




3. Remove the generator drive belt.

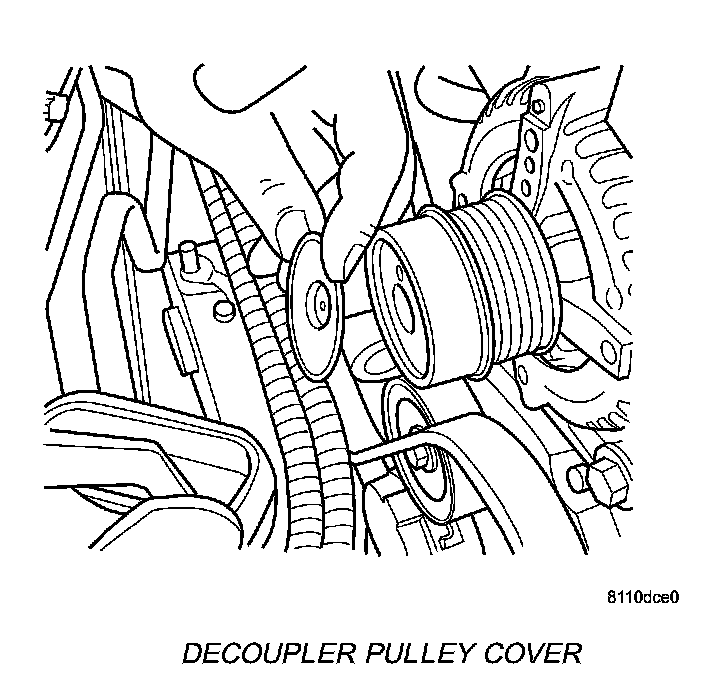

Decoupler Pulley Cover:




4. Remove the decoupler pulley cover.

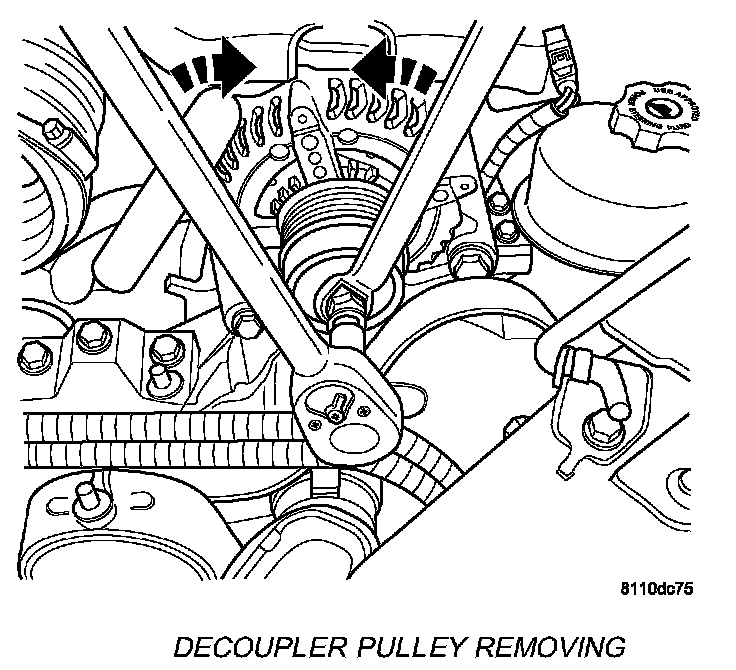

Decoupler Pulley Removing:




5. Using a 10mm and 17mm wrench with Special Tool #8433A, move wrenches in the direction of the arrows to remove decoupler.

INSTALLATION

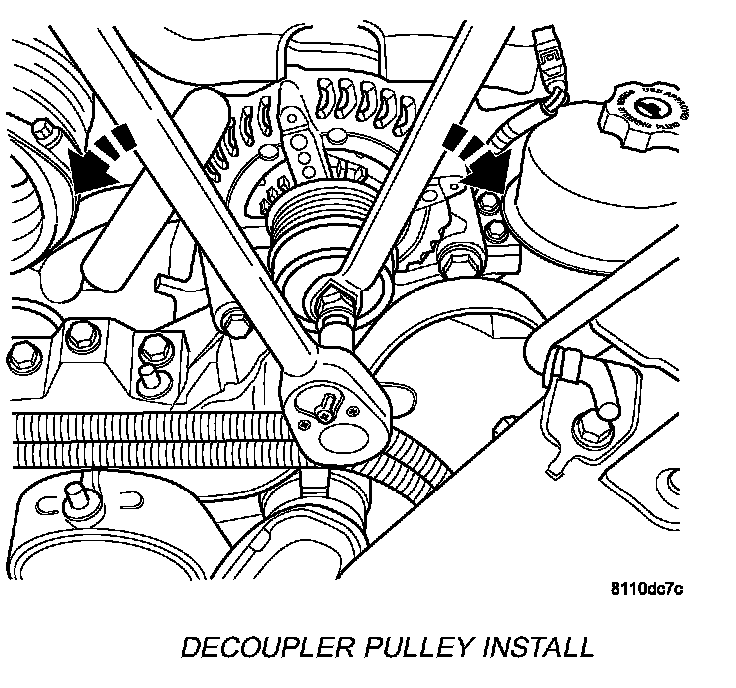

Decoupler Pulley Install:




1. Using a 10mm and 17mm wrench with Special Tool #8433A, move wrenches in the direction of the arrows to Install decoupler. Refer to the torque chart for torque value.

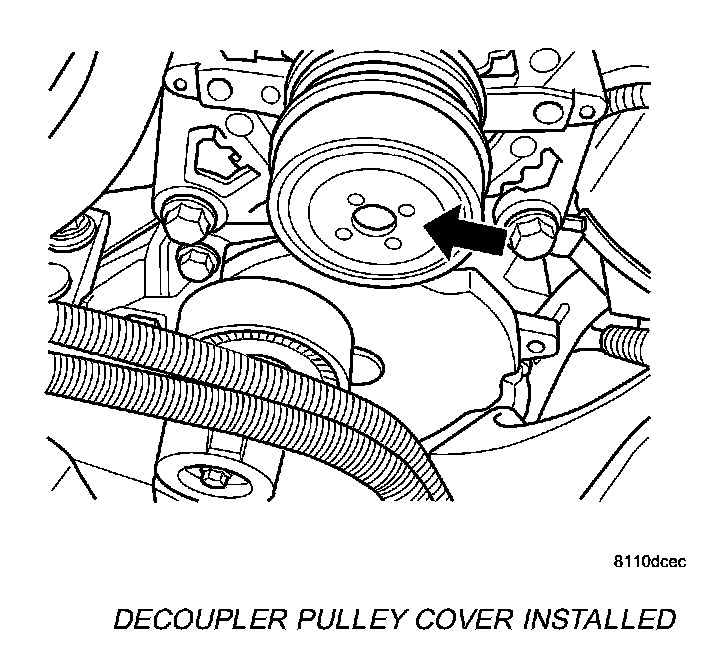

Decoupler Pulley Cover Installed:




2. Install the decoupler pulley cover.
3. Install the generator drive belt.
4. Install the air cleaner box.
5. Connect the negative battery cable.
