Windshield Washer Hose: Service and Repair

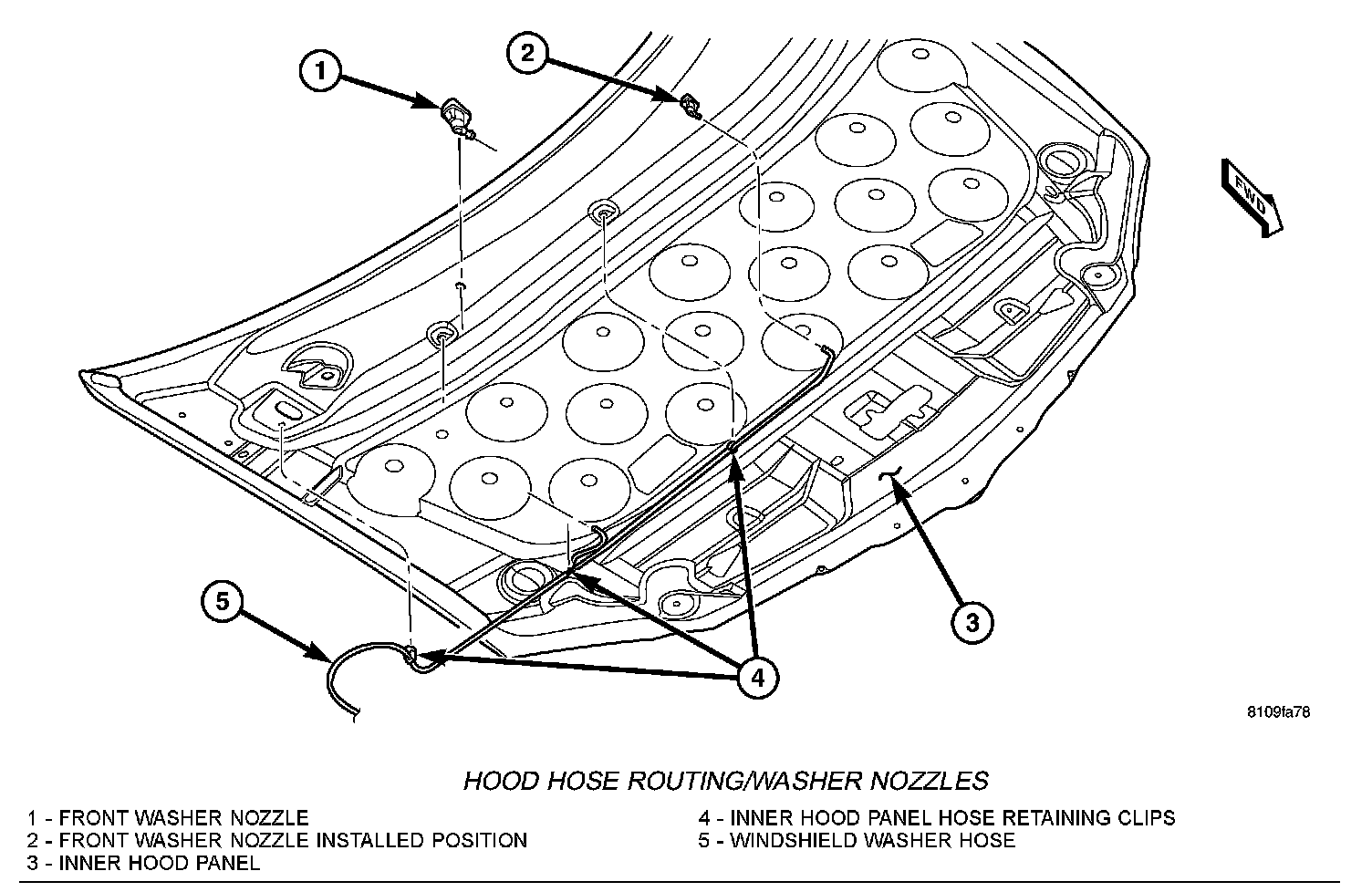

REMOVALHood Hose Routing/Washer Nozzles:

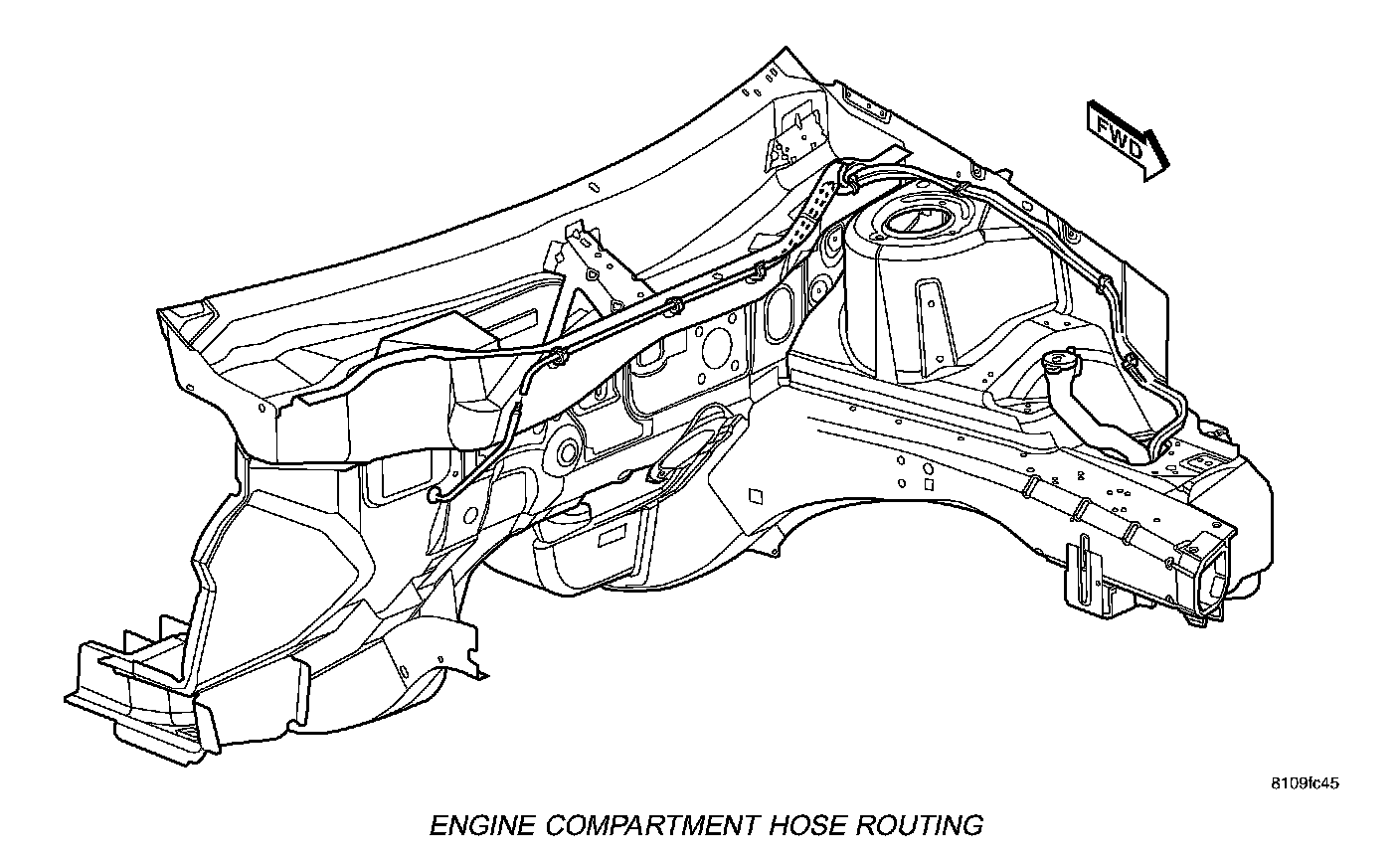

Engine Compartment Hose Routing:

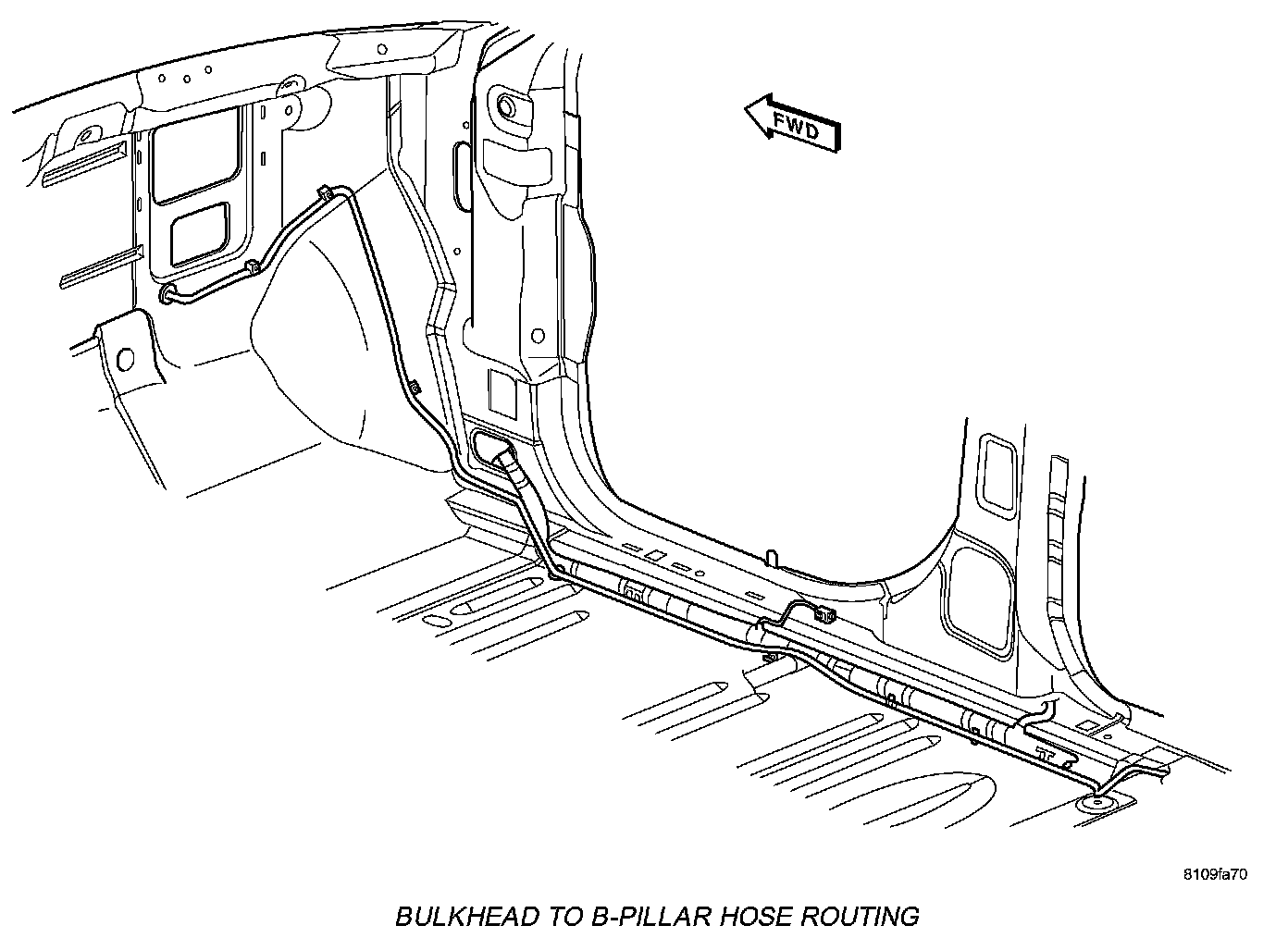

Bulkhead To B-pillar Hose Routing:

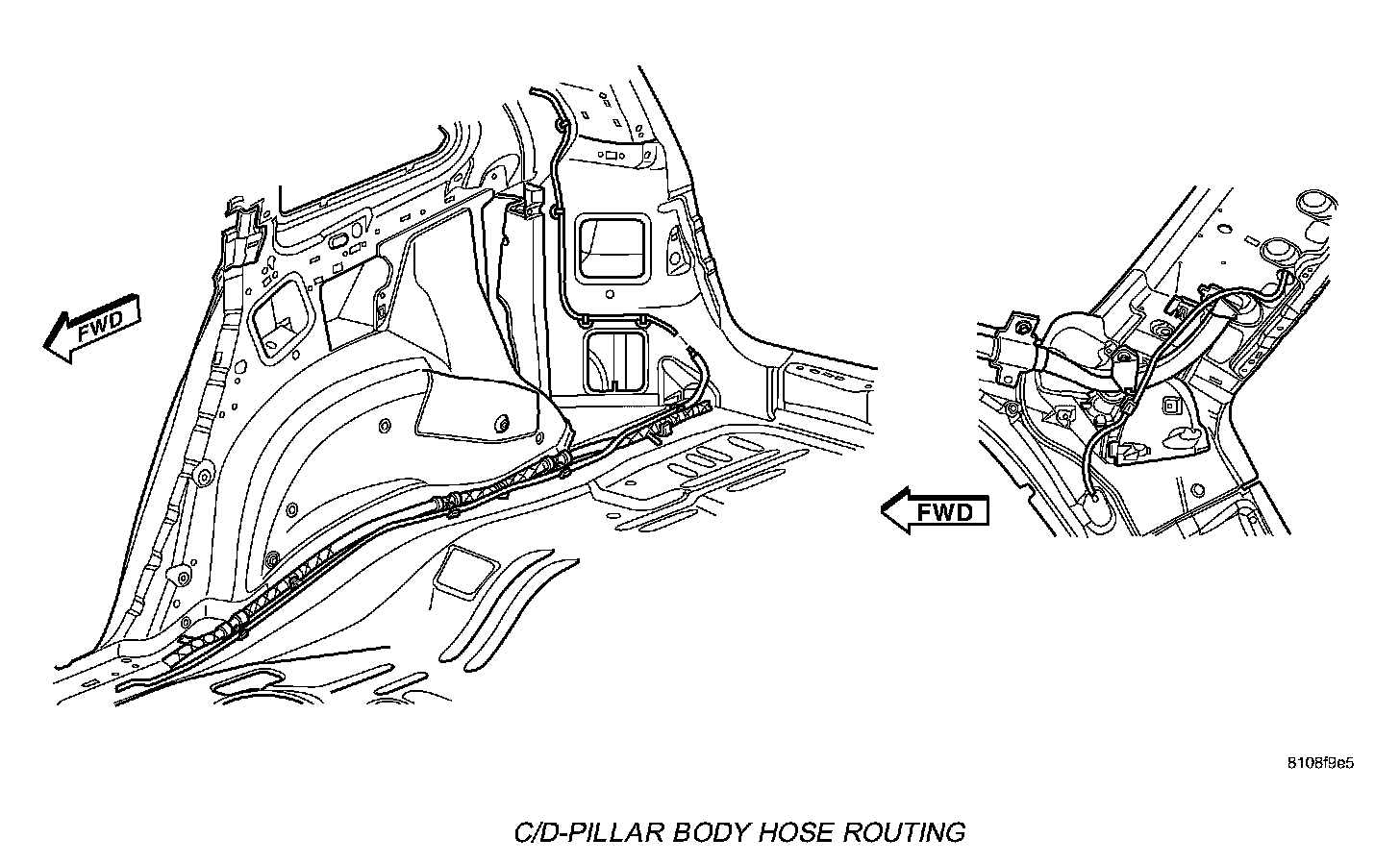

C/D-Pillar Body House Routing:

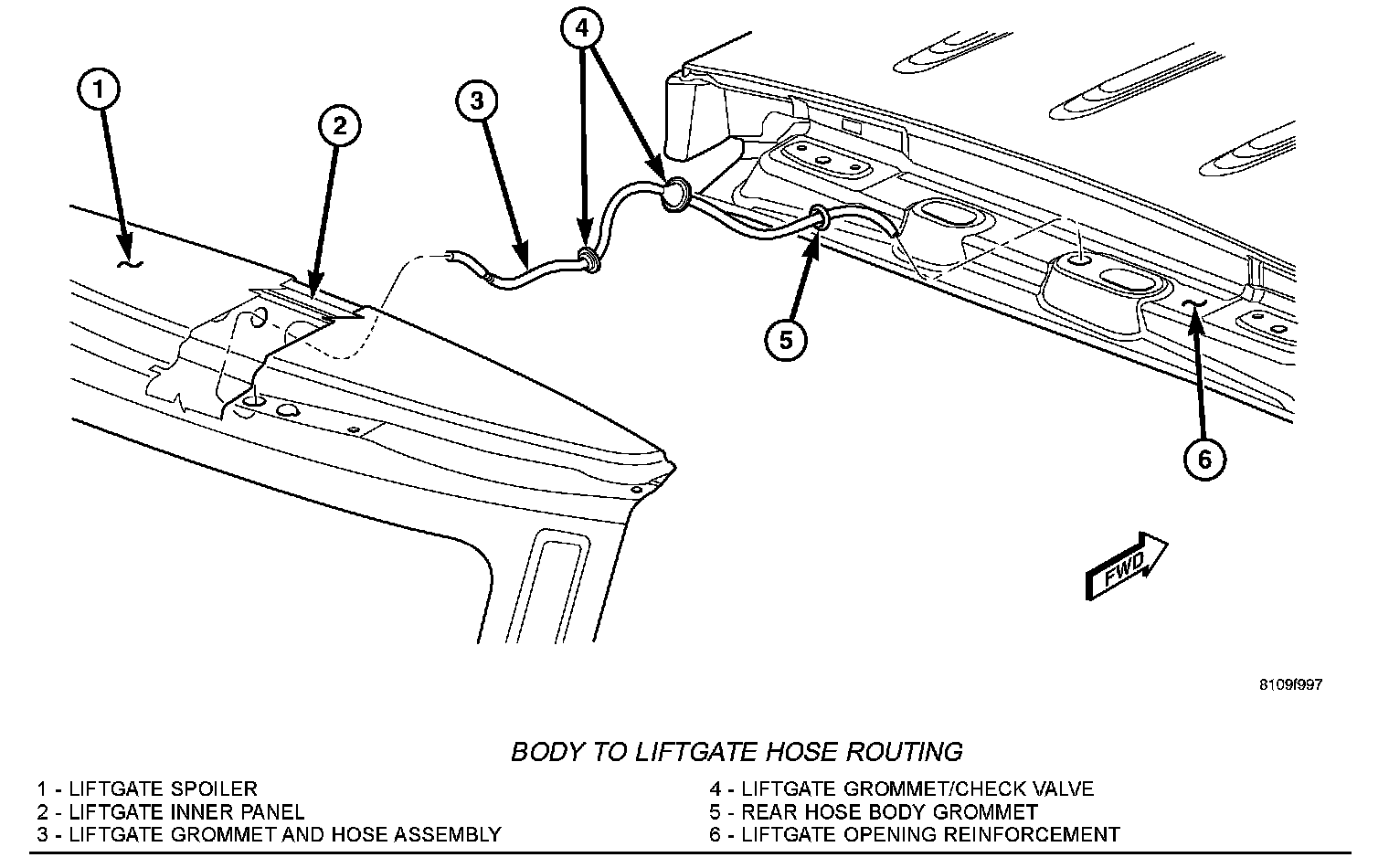

Body To Liftgate House Routing:
1.
Remove components as necessary to access/replace washer hose(s).
INSTALLATION 1.
Install components that were necessary to remove to access washer hose.
2.
Verify vehicle and system operation.
