Front Wiper Arms Replacement

REMOVAL
1. Using a trim stick (special tool #C-4755) or equivalent, gently pry the arm retaining nut cap off.
2. Remove the nut holding wiper arm to the wiper pivot.

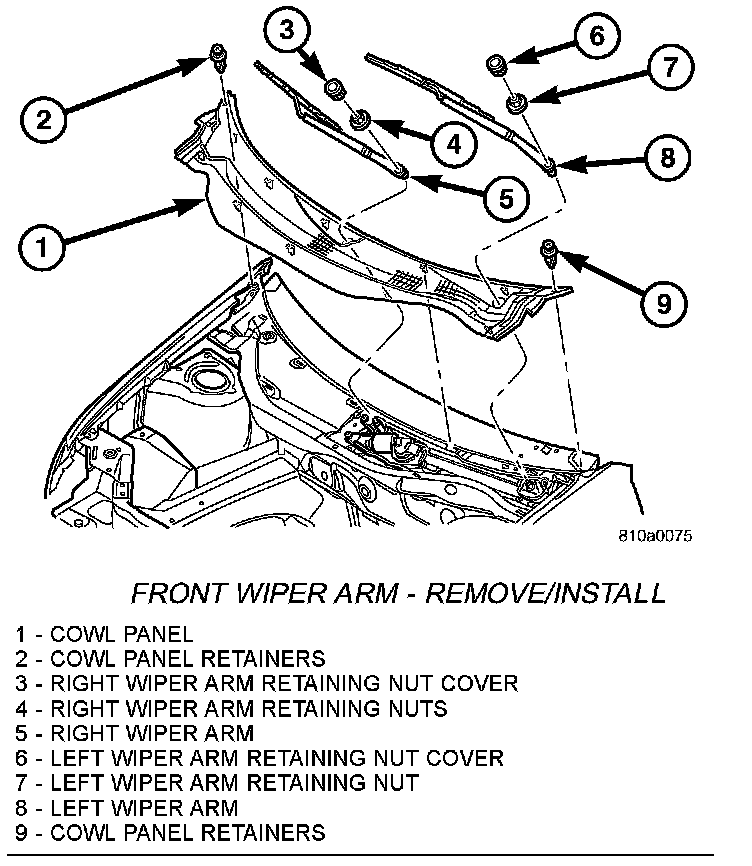

Front Wiper Arm - Remove/Install:

3. Using a suitable two jaw puller, separate the wiper arm from the wiper pivot.

INSTALLATION
1. Position the wiper arm onto the wiper arm pivot in approximate position with the tips of the wiper blades on the tick marks at the bottom of the windshield.
2. Install the nut holding wiper arm to the wiper pivot.
3. Install the retaining nut cover by firmly pressing down on cover over wiper pivot.
4. Check wiper arm adjustment.
5. Verify vehicle and system operation.
