Front Wiper Motor Replacement

REMOVAL
1. Disconnect and isolate the battery negative cable.

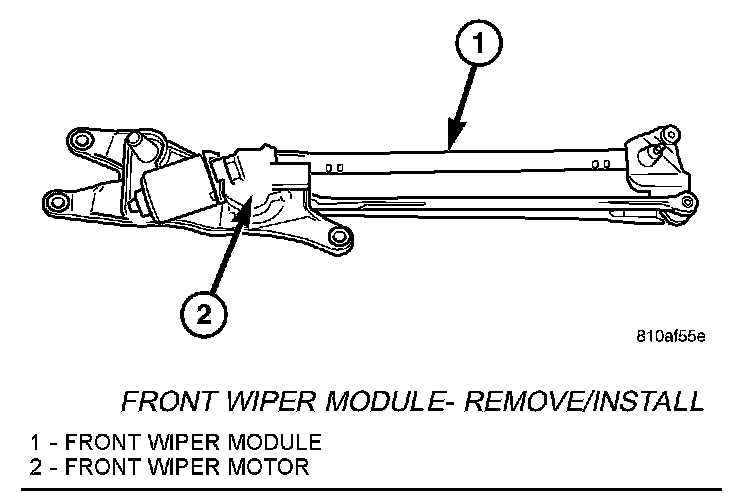

Front Wiper Module - Remove/Install:

2. Remove the wiper module.

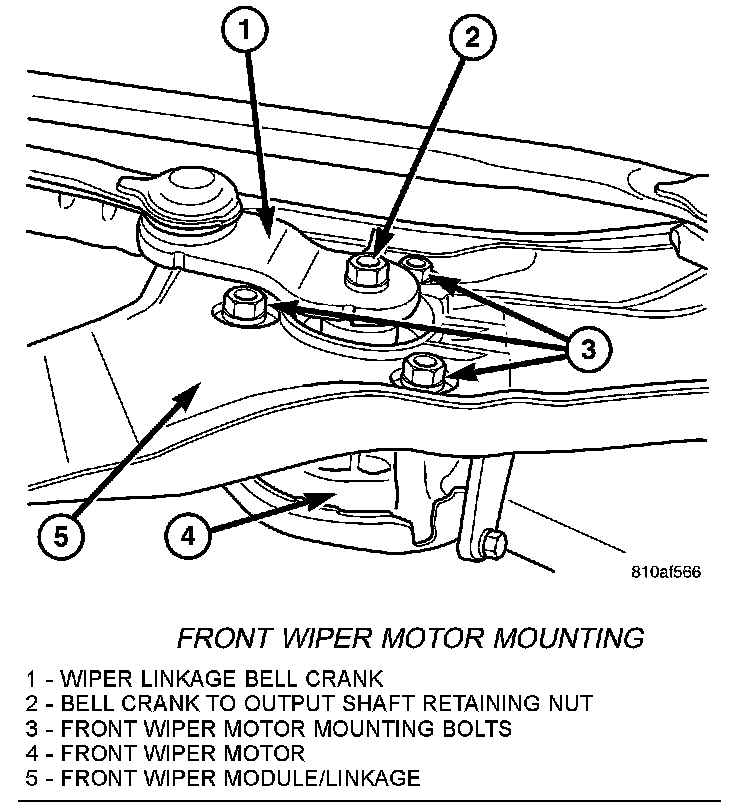

Front Wiper Motor Mounting:

3. With wiper module on bench, pry apart the socket and ball joint at the end of the bell crank .
4. Remove the three front wiper motor mounting bolts and remove motor from module/linkage.

INSTALLATION
1. Position the wiper motor into wiper module and install the three front wiper motor mounting bolts.
2. Press the socket and ball joint together on end of bell crank.
3. Install the wiper module.
4. Connect the battery negative cable.
5. Verify vehicle and system operation.
6. Close hood.
