Front Heat Shield
FRONT HEAT SHIELD 1.
Position the
heat shield on the floor pan.
2.
Install the

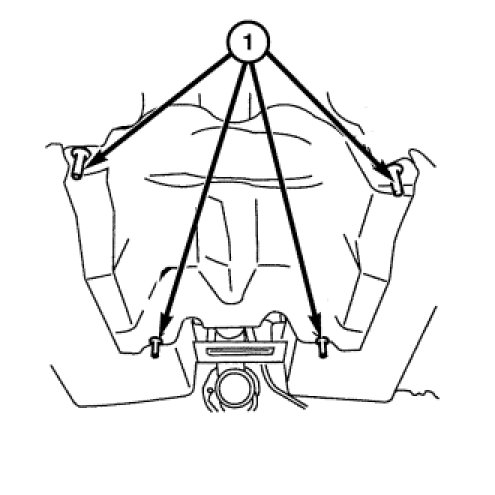

heat shield nuts (1). Tighten the nuts to 10 Nm (89 in. lbs.).
3.
Install the front exhaust section.
Catalytic Converter - Installation.
4.
Start the engine and check for exhaust leaks.
