Disassembly
DISASSEMBLY 1.
Remove the transmission.
Manual Transmission/Transaxle - Removal.
2.
Separate the front and rear transmission sections.
Disassembly.
3.

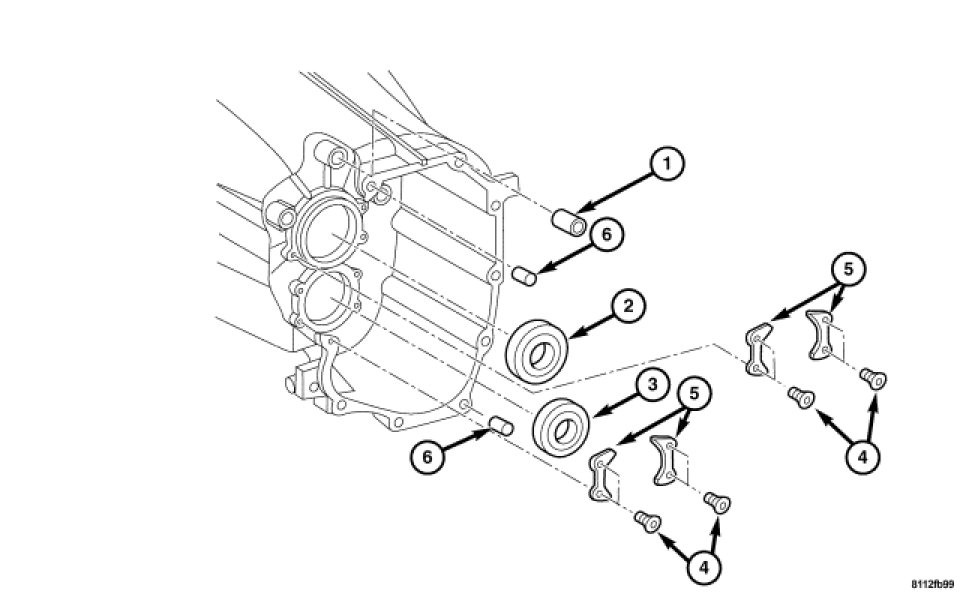

Remove the locking plate bolts (4) and the locking plates (5).
4.
Drive out the input shaft bearing (2) and the countershaft bearing (3).
5.
Remove the shift shaft bearing (1).
6.
Remove the guide sleeves (6).
