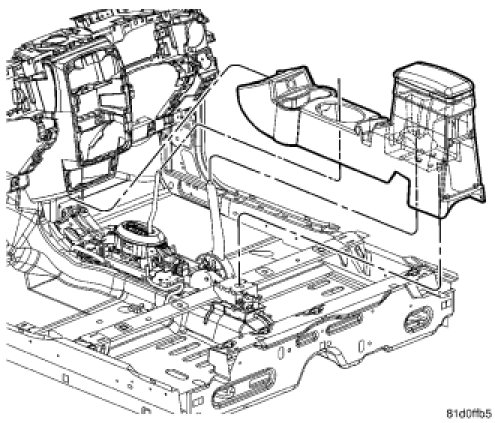

Center Console - Removal
REMOVAL 1.
Disconnect and isolate the battery negative cable.
2.
Remove the four screws located inside the storage bin.
3.
Remove the two screws located under the cup holder lining.
4.
Disconnect the electrical connectors.
5.
Remove the center console from the vehicle.
