Outside Rearview Mirror - Removal







REMOVAL

MANUAL MIRROR

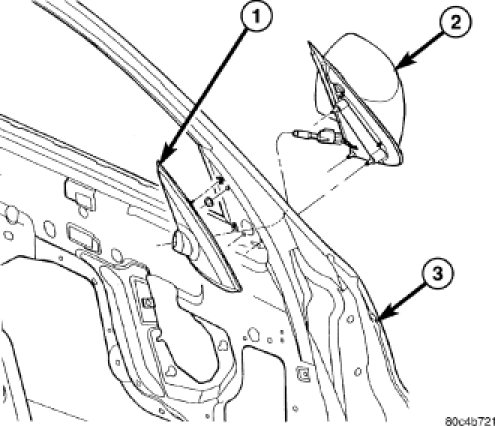

1. If servicing the driver side manual mirror (2), remove the side view mirror bezel (1) by disengaging the retaining clips using a trim stick C-4755 or equivalent.
2. If servicing the passenger side manual mirror, remove the door trim panel Front Door Trim Panel - Removal.
3. Remove three nuts that secure the side view mirror to the front door (3) and remove the mirror.

POWER MIRROR

NOTE: Sedan model shown in illustration. Convertible model similar.





1. Remove the front door trim panel from the side of the vehicle being serviced Front Door Trim Panel - Removal.
2. Disconnect the power mirror wire harness connector (2).
3. Remove the three nuts that secure the side view mirror (1) to the front door (3) and remove the mirror.
