Outside Rearview Mirror Glass - Installation







INSTALLATION





1. Connect the mirror wire harness to the heated glass electrical connector, if equipped.

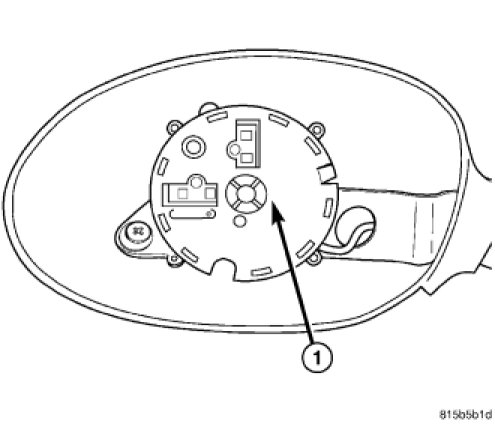

2. Position the mirror glass to the mirror assembly and align the mirror glass holder retaining clips to the mirror motor (1).




NOTE: Pressure must be applied equally over the center portion of the mirror glass to fully engage the mirror glass retaining clips to the mirror motor.

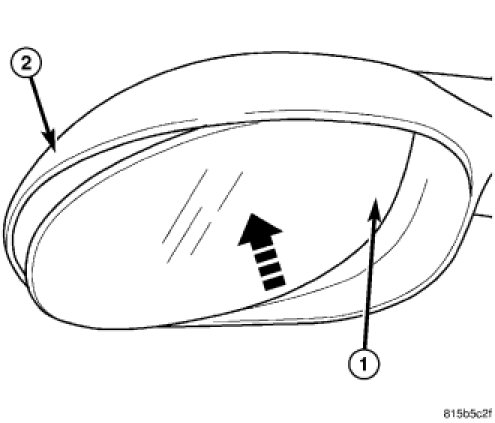

3. Using one hand, carefully push the mirror glass (1) onto the mirror motor, while at the same time supporting the mirror housing (2) from the backside with the other hand. Firmly push on the mirror glass until all mirror glass holder retaining clips are fully engaged.
4. Verify retention of the mirror glass holder by gently pulling outward on the glass.
5. If servicing power mirror, reconnect the negative battery cable.
