Center Mounted Brake Lamp

Component ID: 134
Component : LAMP-HIGH MOUNTED STOP

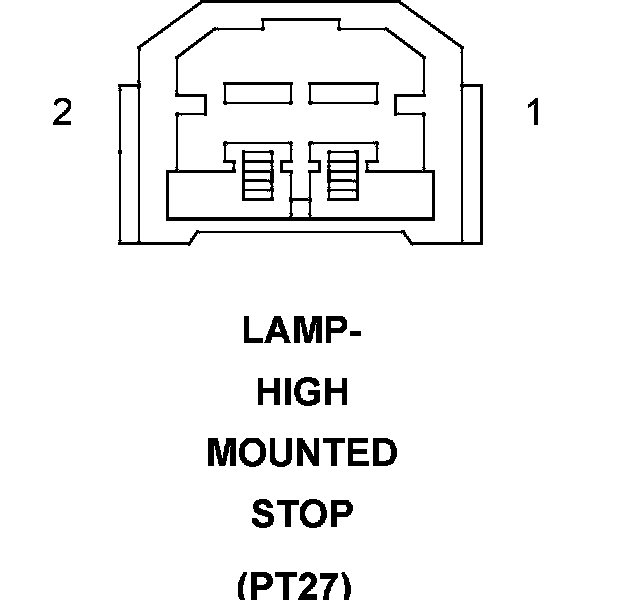

Connector:
Name : LAMP-HIGH MOUNTED STOP
Color :
# of pins : 2
Qualifier : (PT27)




Pin Circuit Description
1 Z908 18BK GROUND
2 L53 18DG/WT BRAKE LAMP SWITCH OUTPUT

Component Location - 68




Component Location - 69




Component Location - 67






Connector:
Name : LAMP-HIGH MOUNTED STOP
Color : BLACK
# of pins : 2
Qualifier : (PT44)




A L53 18DG/WT PRIMARY BRAKE SWITCH SIGNAL
A L53 18DG/WT BRAKE LAMP SWITCH OUTPUT
B Z908 20BK GROUND

Component Location - 68




Component Location - 69




Component Location - 67
