Variable Induction Control Valve




Component ID: 244

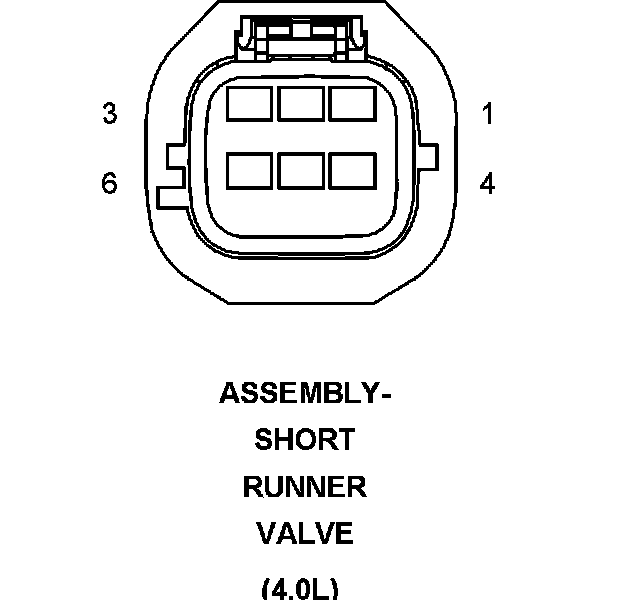

Component : ASSEMBLY-SHORT RUNNER VALVE

Connector:
Name : ASSEMBLY-SHORT RUNNER VALVE
Color :
# of pins : 6
Qualifier : (4.0L)




Pin Circuit Description
1 K236 20DB/LG SRV CONTROL
2 - -
3 F342 16BR/WT FUSED ASD OUTPUT
4 K900 20DB/DG SENSOR GROUND
5 K235 20DB/YL SRV SIGNAL
6 K856 20YL/PK 5 VOLT SUPPLY

Component Location - 17
