Crankshaft Position Sensor - Installation
4.0L 1.

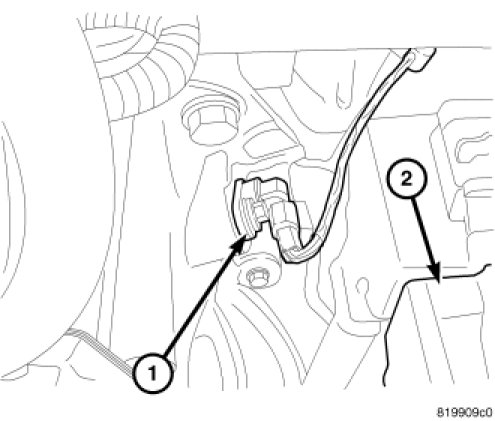

Install
crankshaft position sensor (1) to the transmission housing.
2.
Install bolt and tighten to 12 Nm (106 in. lbs.).
3.
Connect electrical connector to the
crankshaft position sensor (1).
4.
Connect negative battery cable, tighten nut to 5 Nm (45 in. lbs.).
