Intake Manifold
SPECIFICATIONS - TORQUE
Lower Intake Torque Sequence
Upper Intake Torque Sequence
Tighten bolts gradually starting in the center working outward until a torque of 12 Nm (105 in. lbs.) is obtained.

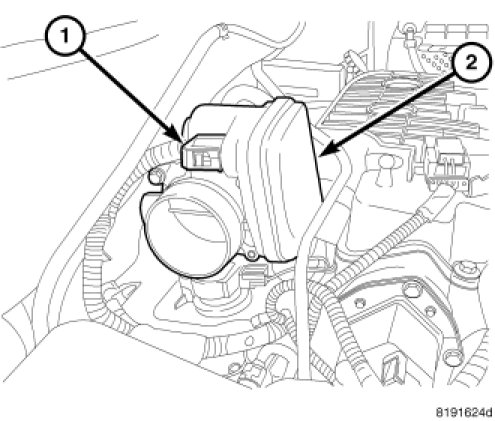

Throttle Body
CAUTION: DO NOT OVER TORQUE. Over tightening can cause damage to the throttle body, gaskets, bolts and/or the intake manifold. The throttle body must be torqued in a mandatory torque sequence. Tighten in a criss - cross pattern to specification.
Tighten the bolts in a mandatory torque criss - cross pattern sequence to 5.5 Nm (50 in. lbs.).
