Oil Pan, Engine

SPECIFICATIONS - TORQUE

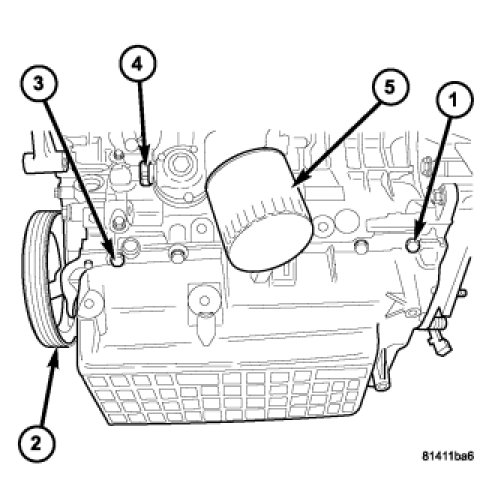

First tighten the M8 oil pan alignment bolt (1) to 28 Nm (250 lbs. in.), then tighten alignment pan bolt (3) to 28 Nm (250 lbs. in.).
Tighten the remaining M8 bolts and M8 nuts to 28 N.m (250 in. lbs.) starting on the opposite side of the oil pan, then the M6 bolts to 12 N.m (105 in. lbs.).
