Power Window Relay: Service and Repair

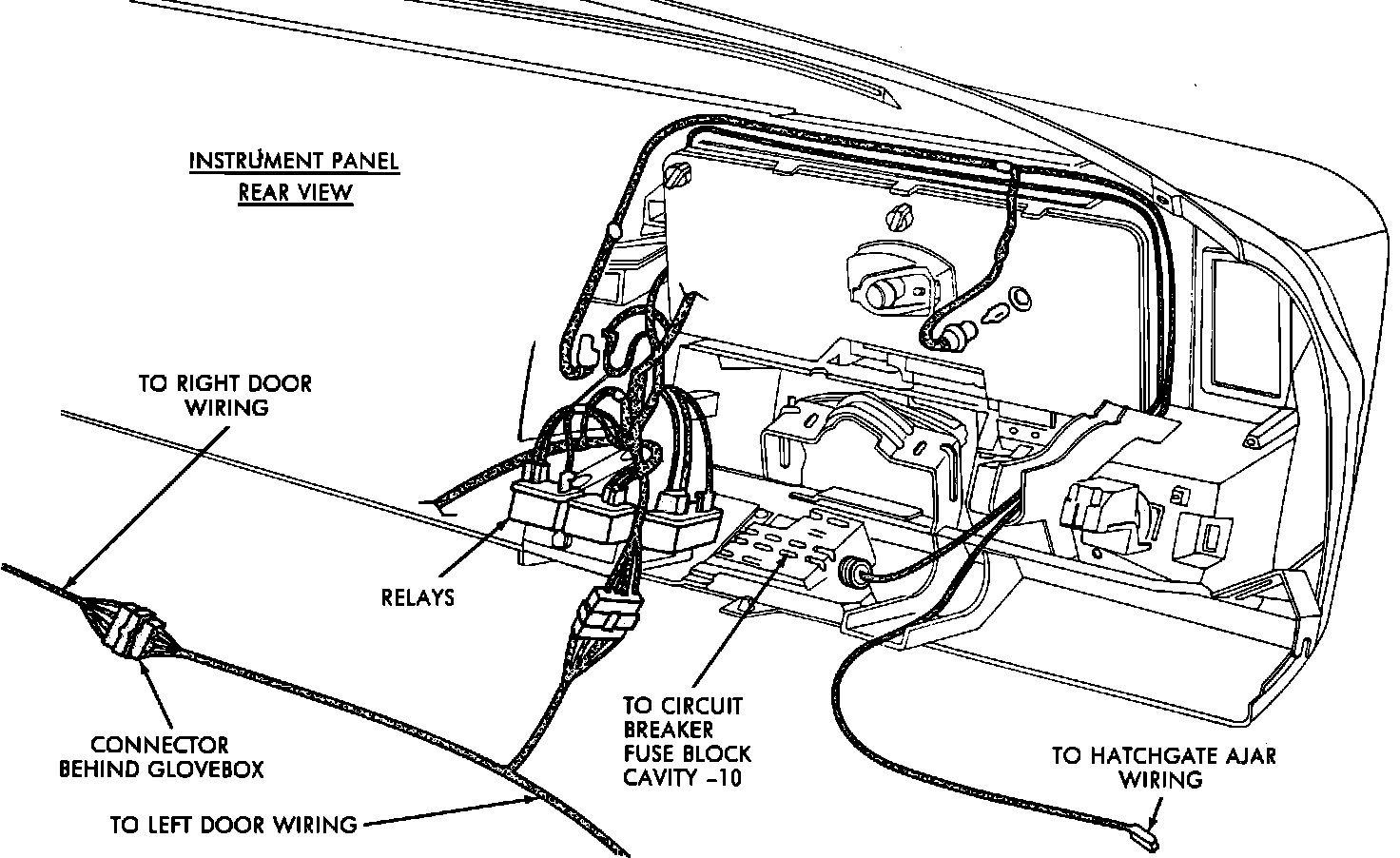

Door Lock And Power Window Circuit Breaker And Relays Location:
Disconnect the battery negative terminal. Remove the wire connector from the
relay. Remove the attaching bolt that holds the relay to the instrument panel. Install by attaching relay to the instrument panel and connecting the wires to the relay. Connect the battery negative terminal and test the system for proper operation.
