Ignition Coil: Service and Repair

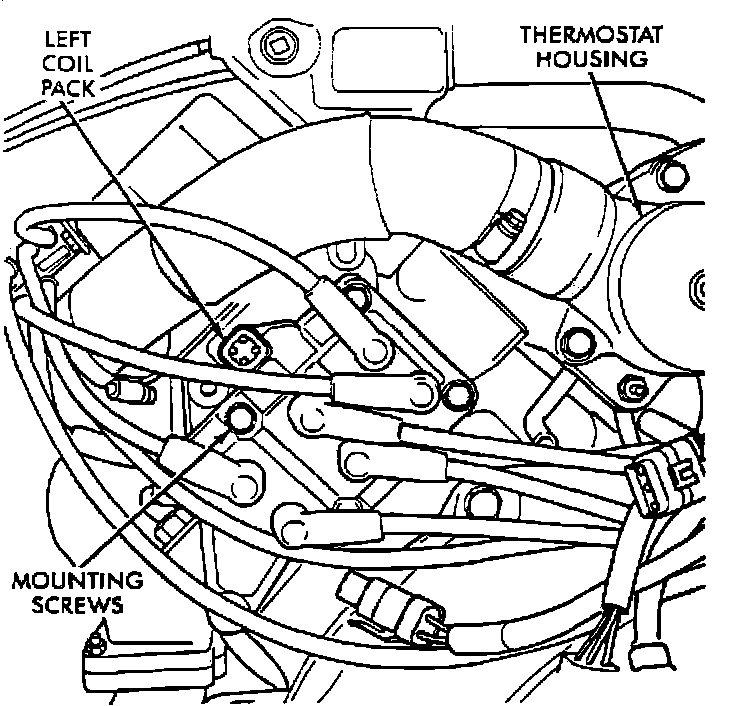

Left Ign. Coil Pack:

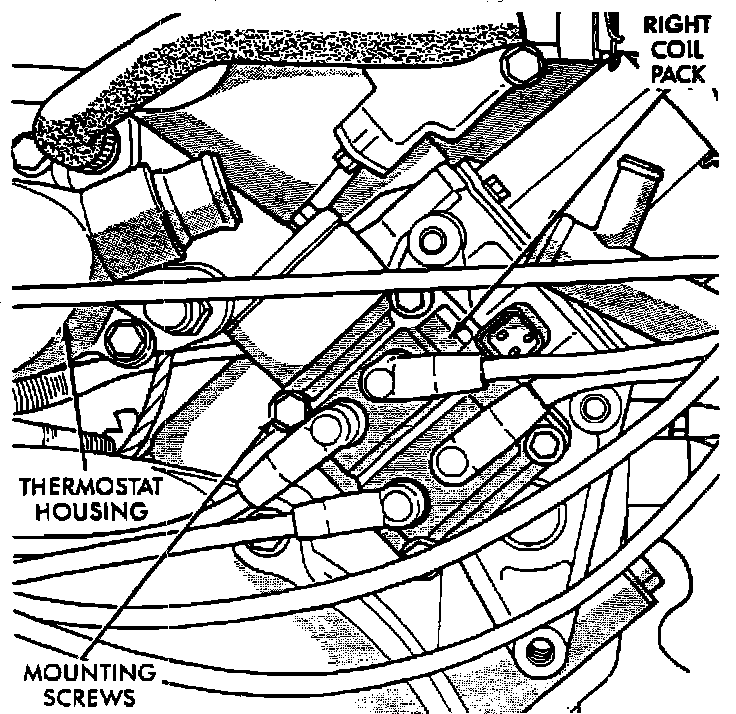

Right Ign. Coil Pack:
REMOVAL 1.
Remove cowl cover.
2.
Remove spark plug cables from coil.
3.
Remove electrical connector.
4.
Remove ignition coil fasteners.
INSTALLATION 1.
Install ignition coil fasteners and torque to
105 in-lbs (12 Nm).
2.
Install electrical connector.
3.
Install spark plug cables to coil.
4.
Install cowl cover.
