AMC Ignition System Intermittent Diagnosis

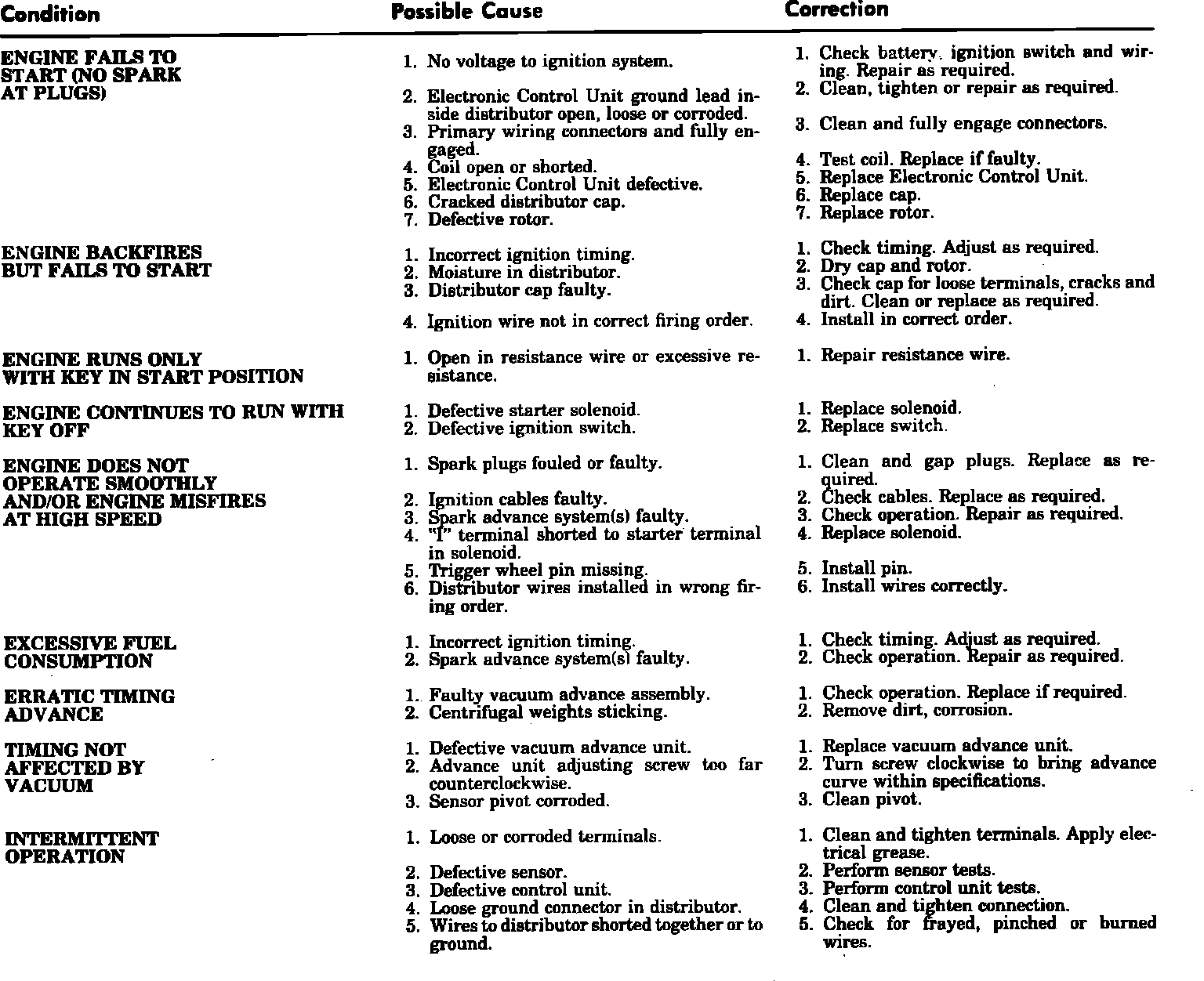

American Motors solid state ignition system service diagnosis chart:
Since intermittent failure may be caused by loose or corroded terminals, defective components, poor ground connections or defective wiring, it is necessary to check all wiring connections in the
ignition system. Also, refer to
Fig. 3 for further diagnosis.
