Computers and Control Systems: Locations

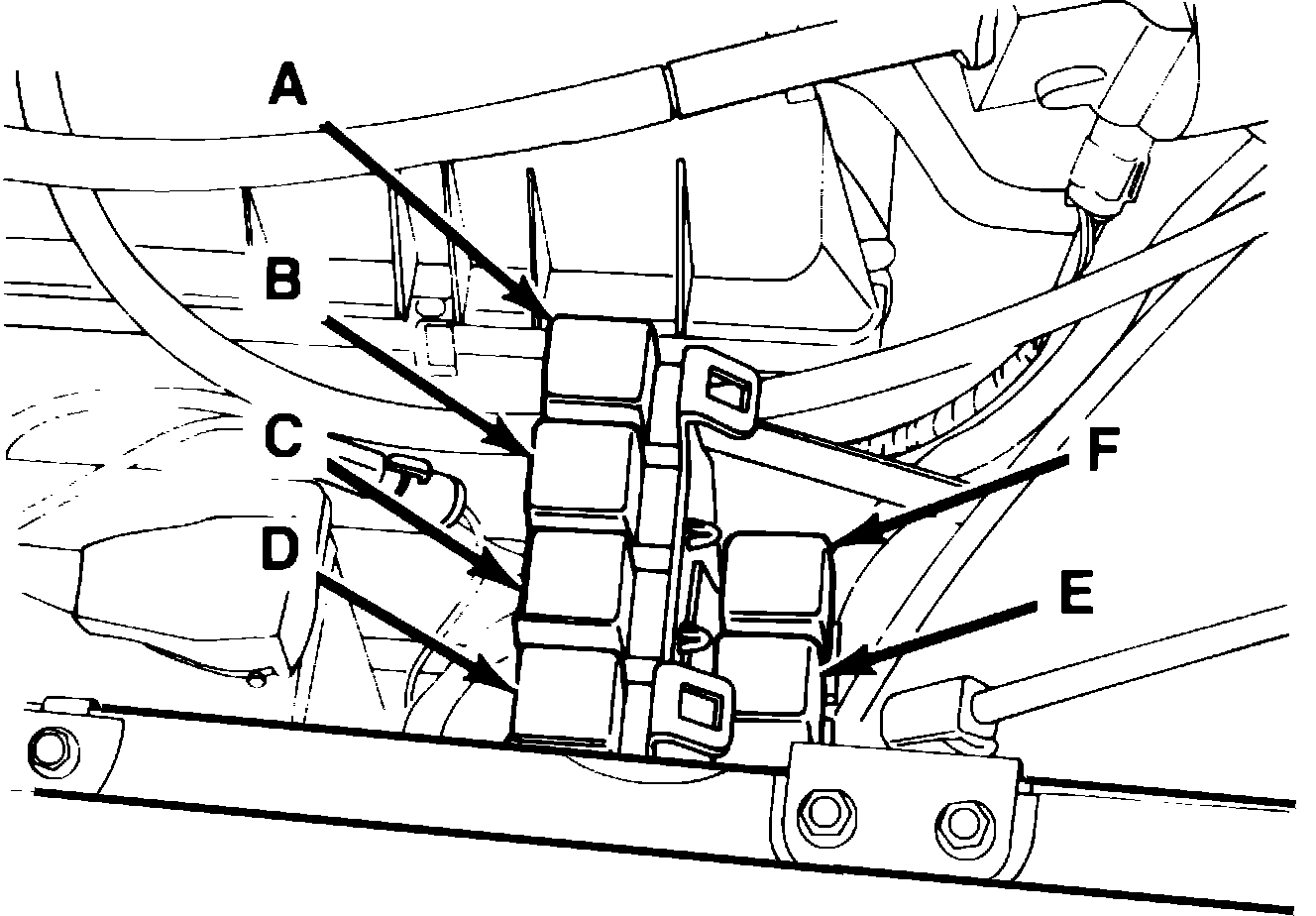

Fig. 9 Engine relay identification:
Engine relays are located on left hand strut tower under a plastic cover.
A =
Ignition Relay B = Start Relay
C = Engine
Fan Relay D =
A/C Clutch Relay E = B+
Relay F =
Fuel Pump Relay
