Traveler/Maintenance Monitor - Manual Revisions

No.
08-53-90

(C08-03-0)

P-813

Date
March 25, 1990

Index
ELECTRICAL

Subject
Service Manual Revision; Traveler & Maintenance Monitor

Models
1990
BB Body

BODY CODE LEGEND BB - PREMIER

SERVICE MANUAL REVISION

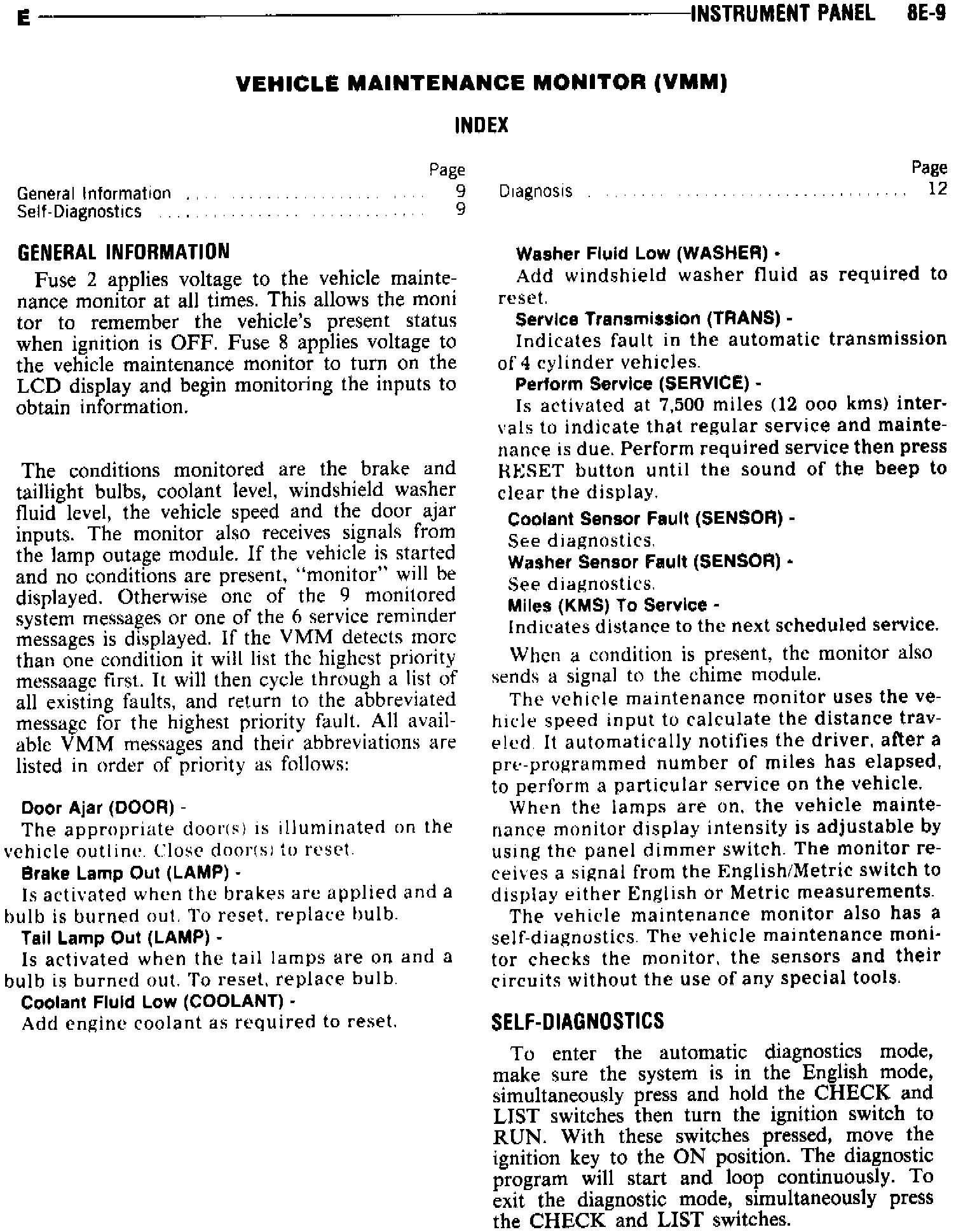

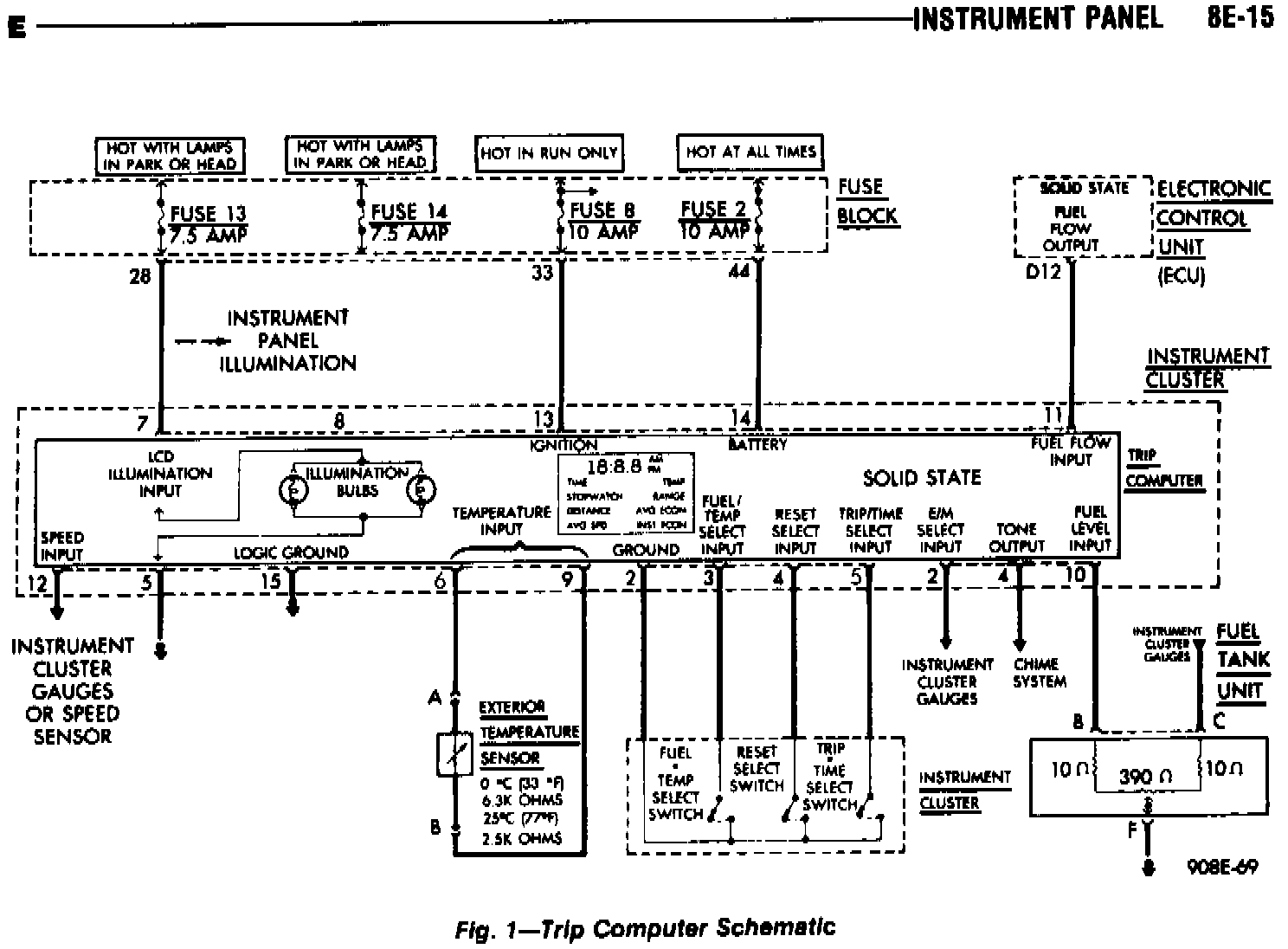

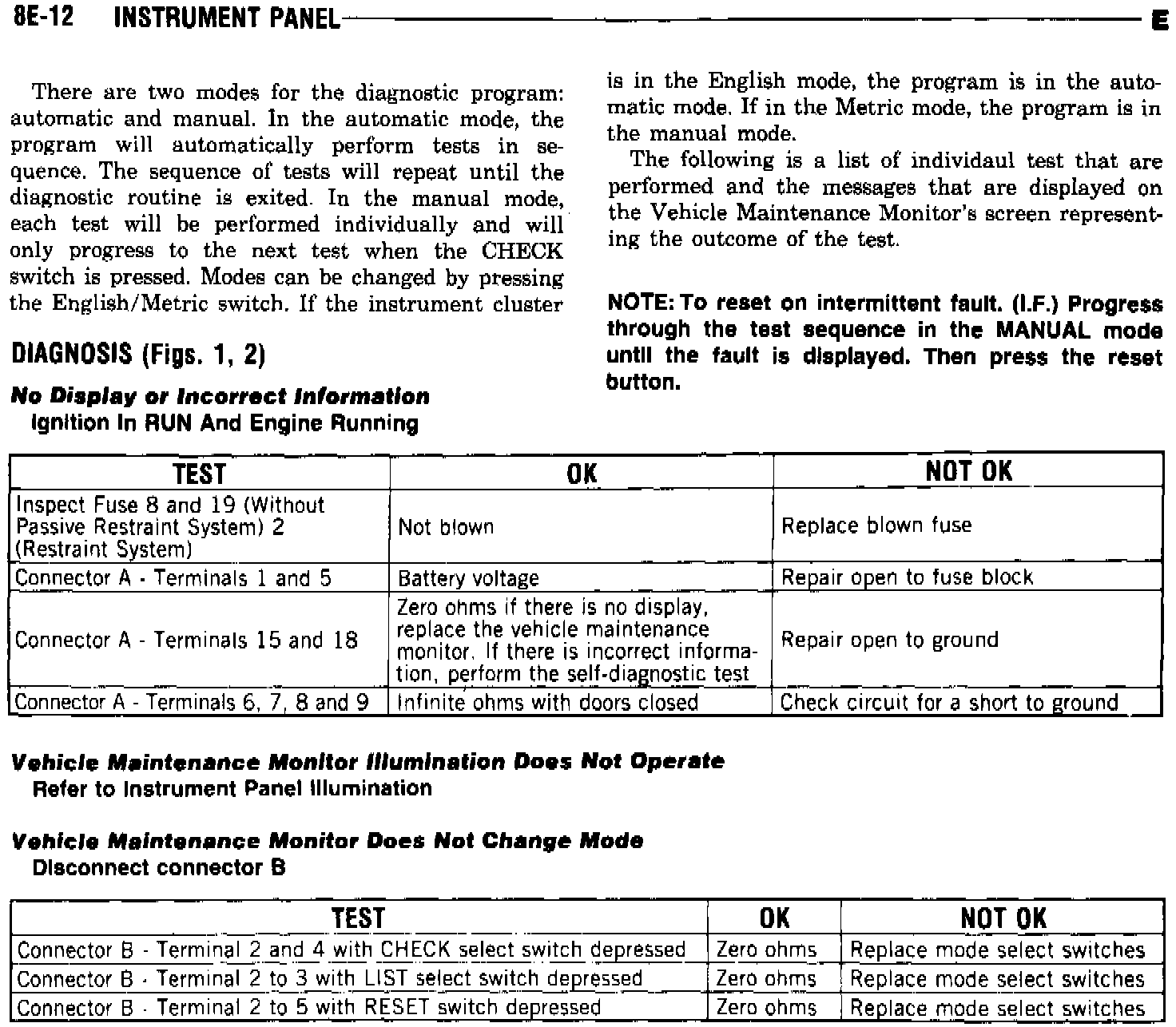

The diagnostic procedures for the Vehicle Maintenance Monitor System and the Trip Computer System on pages 8E-9, 8E-10, 8E-11, 8E-12, 8E-15 and 8E-11 of the 1990 Premier/Monaco Service Manual Publication # 81-220-0140 have been revised.




















Please insert these revised pages into this service manual for future reference.

POLICY: Information only
