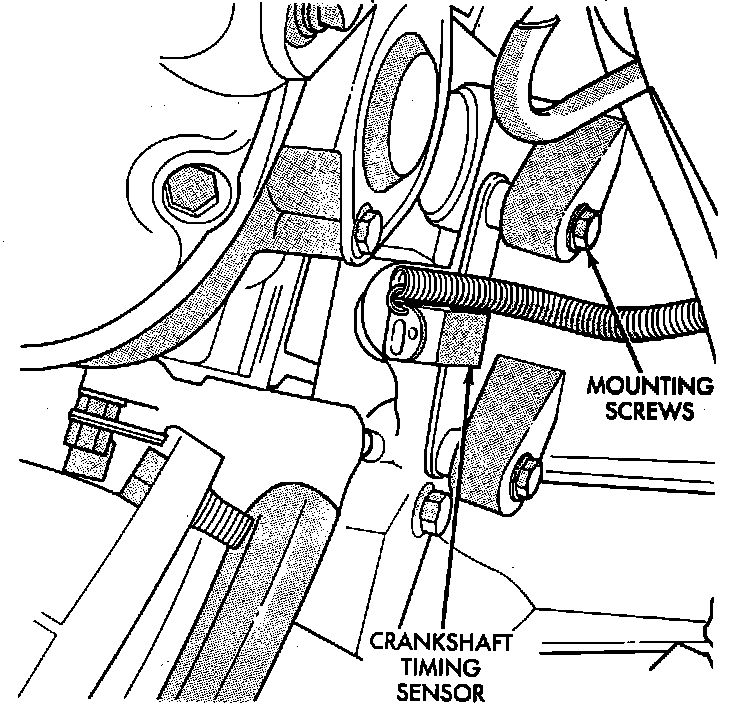

Crankshaft Position Sensor:

REMOVAL

1. Disconnect the crank timing sensor pick-up lead at the wiring harness connector.
2. Remove crank timing sensor retaining bolt.
3. Pull crankshaft timing sensor from the transaxle housing.

INSTALLATION

1. Install sensor on housing. Hold in this position and install and torque the retaining bolt 105 lb.in. (12 Nm.).
2. Connect crank timing sensor lead wire at wiring harness connector.
