Connector Locations

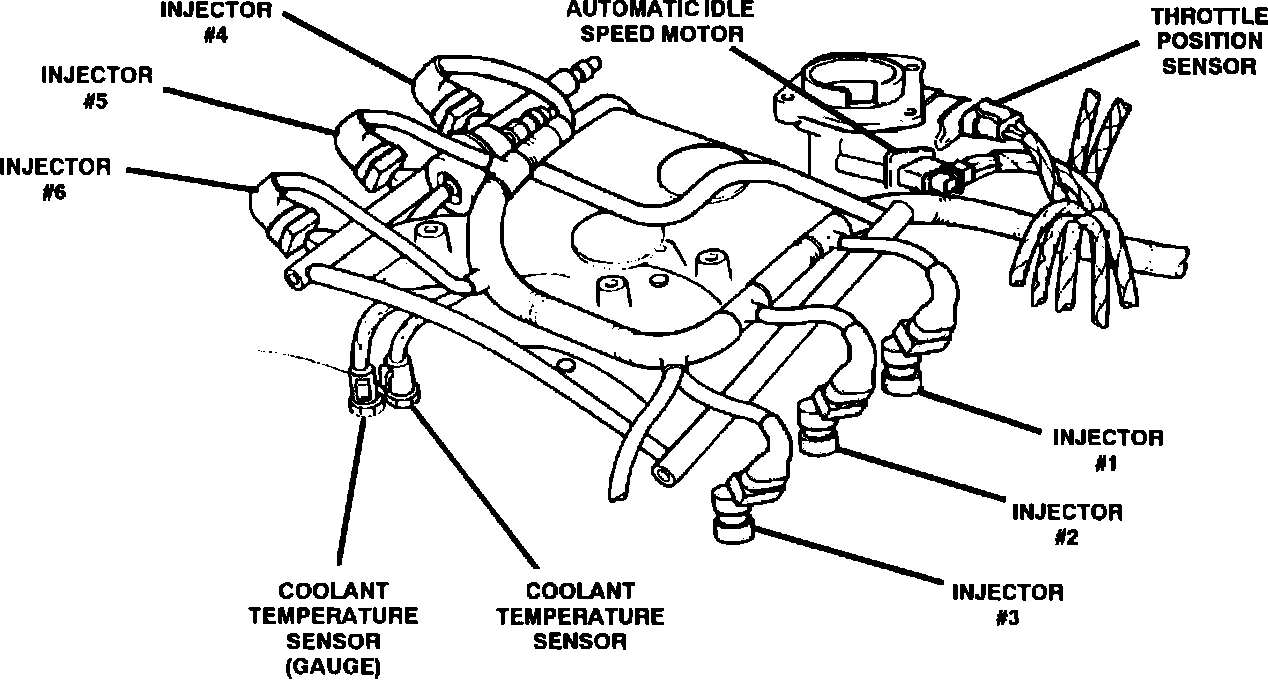

Injector, AIS, CTS, TPS Connector Locations:






The Coolant Temperature Sensor connector is located on the intake manifold, at the left rear corner behind the throttle body assembly.
