Throttle Full Close Switch: Description and Operation

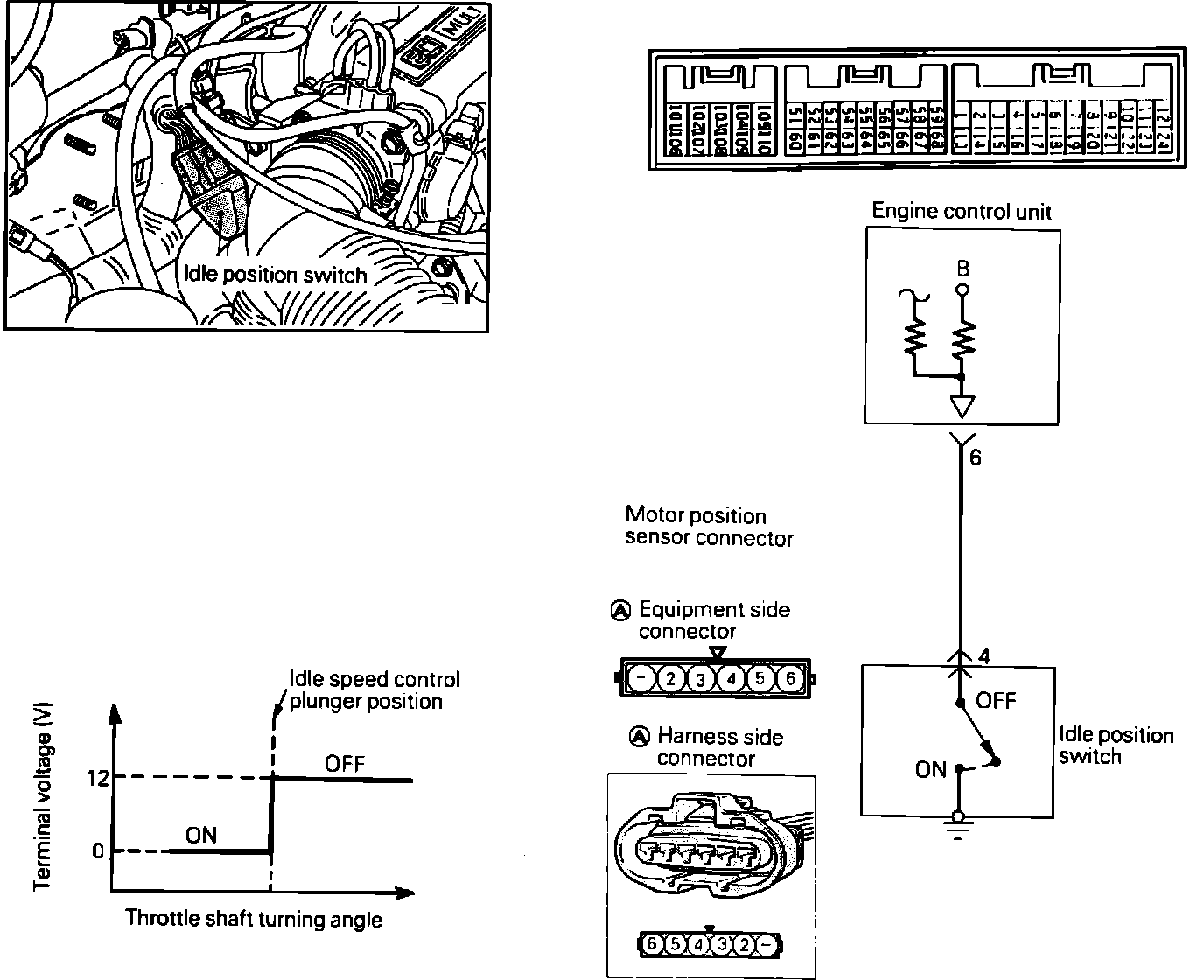

Idle Position Switch Circuit:
The
Idle Position Switch, which is a contact type switch, senses accelerator operation. The switch is installed on the throttle chamber. When the throttle valve is in the idle position, the ISC lever pushes the push-pin to turn on the contact.
