Service Manual - Changes and Revisions

9227chrysler01

NO.: 26-03-92

GROUP: Miscellaneous

DATE: Apr. 06, 1992

SUBJECT:
Service Manual Revisions

MODELS:

1991-1992 (B7) Stealth
1992 (B8) Colt Vista/Summit Wagon
(B4) Ram 50/Power Ram 50
(BD) Laser/Talon

This Technical Service Bulletin contains revised service manual pages. The revisions are printed in red and highlighted with **asterisks**.

Please insert these pages into the appropriate service manual.

POLICY: Information only.

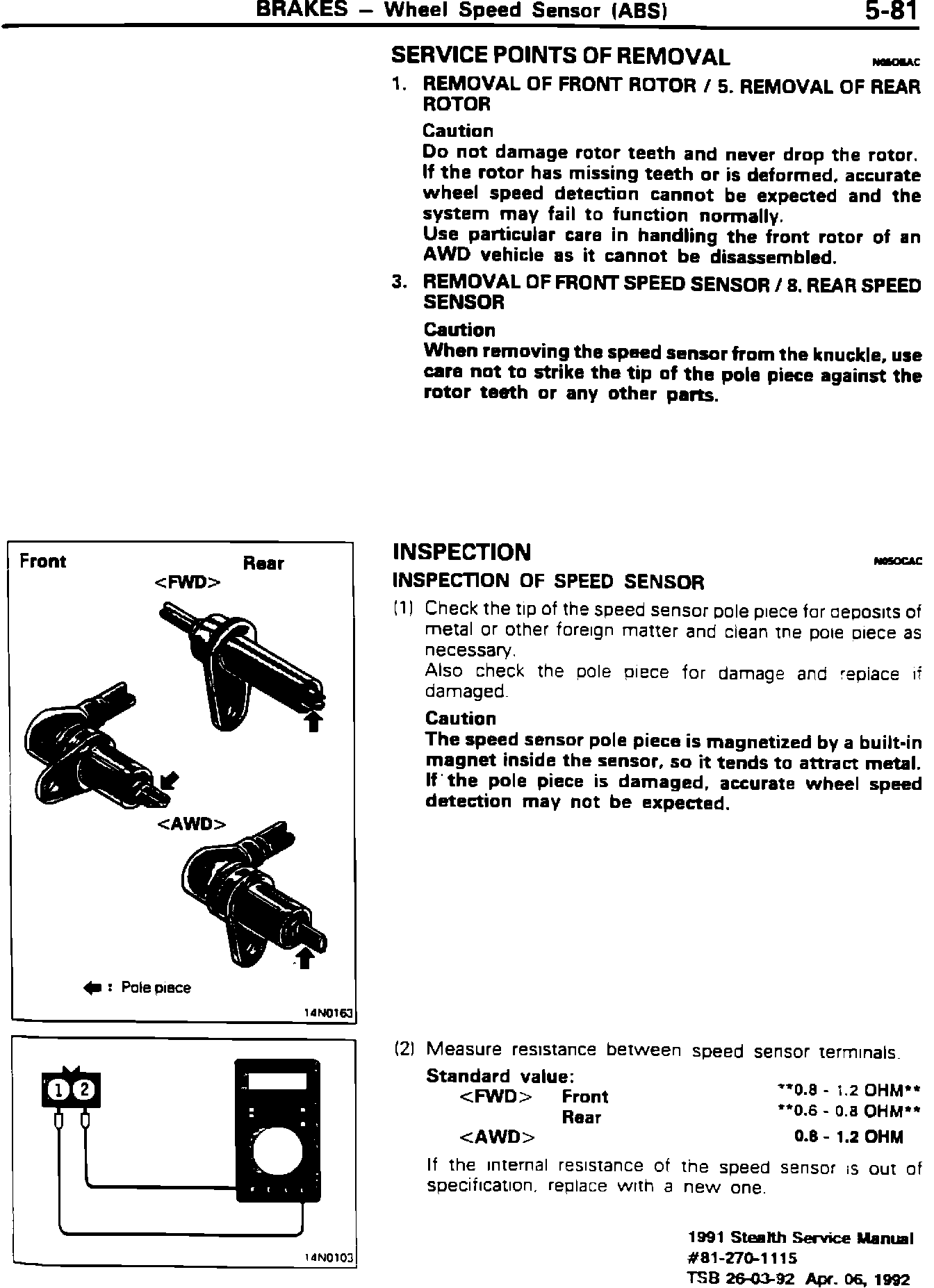

5-81 BRAKES - WHEEL SPEED SENSOR (ABS)

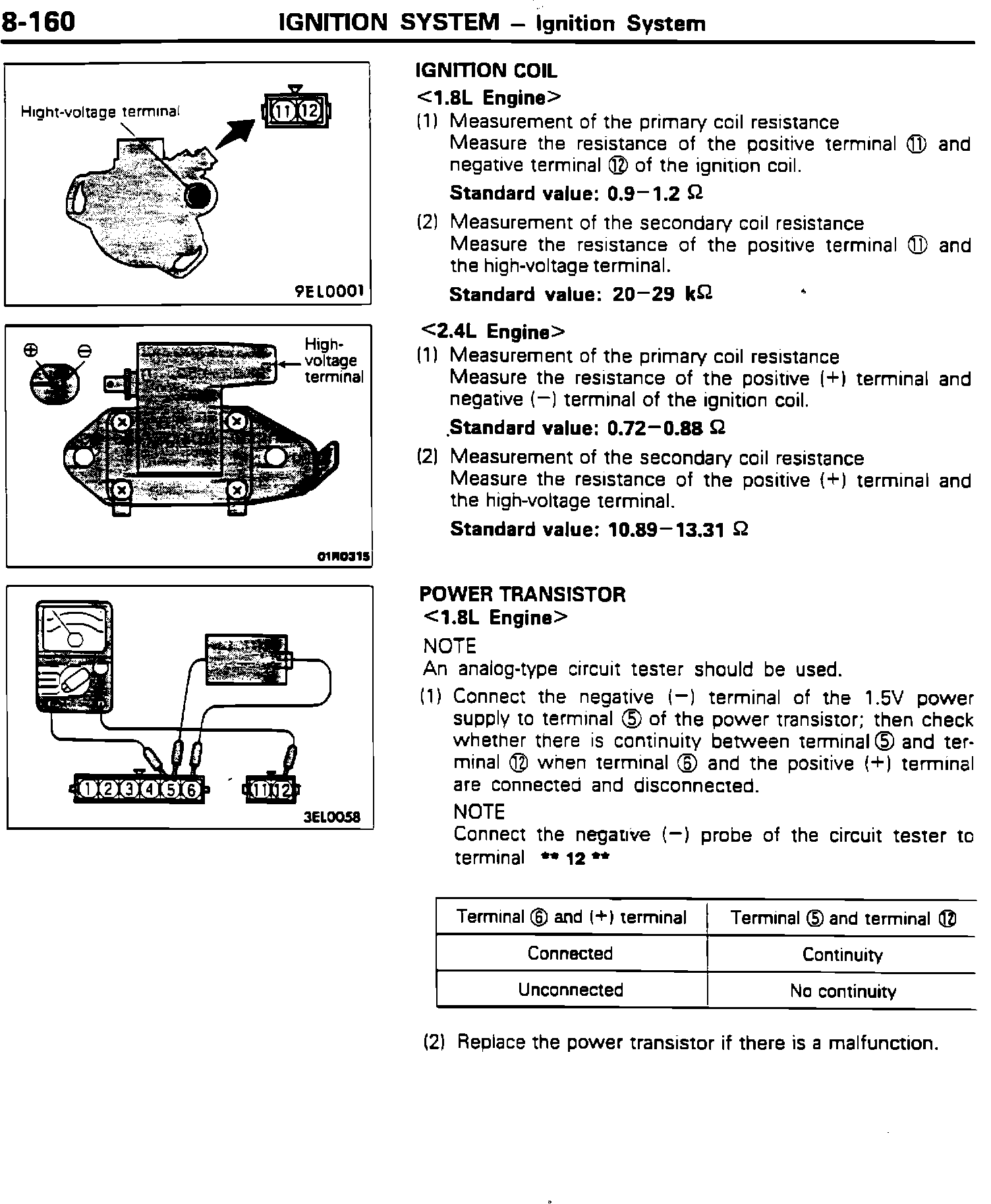

8-160 - IGNITION SYSTEM

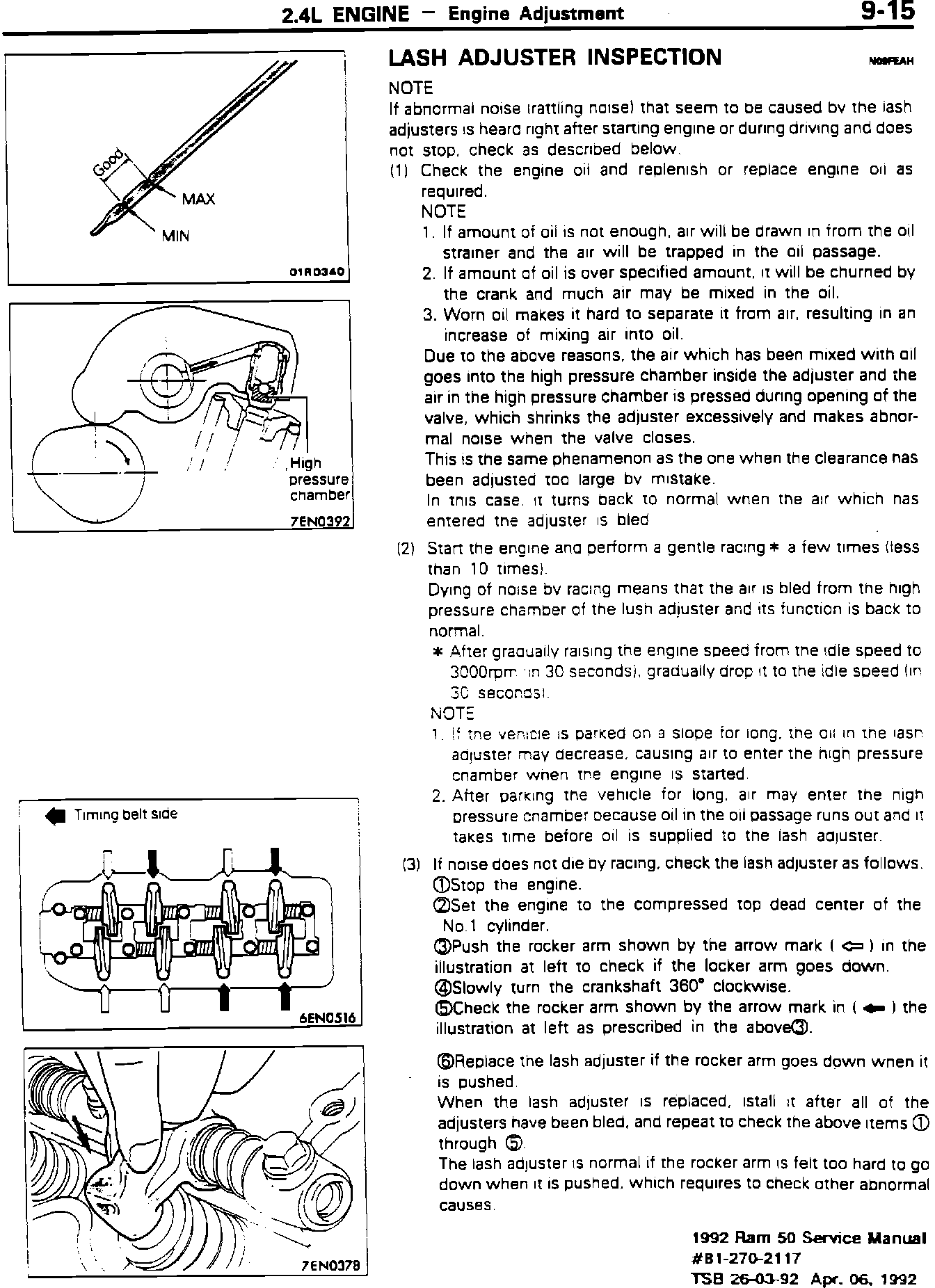

9-15 2.4L ENGINE - ENGINE ADJUSTMENT

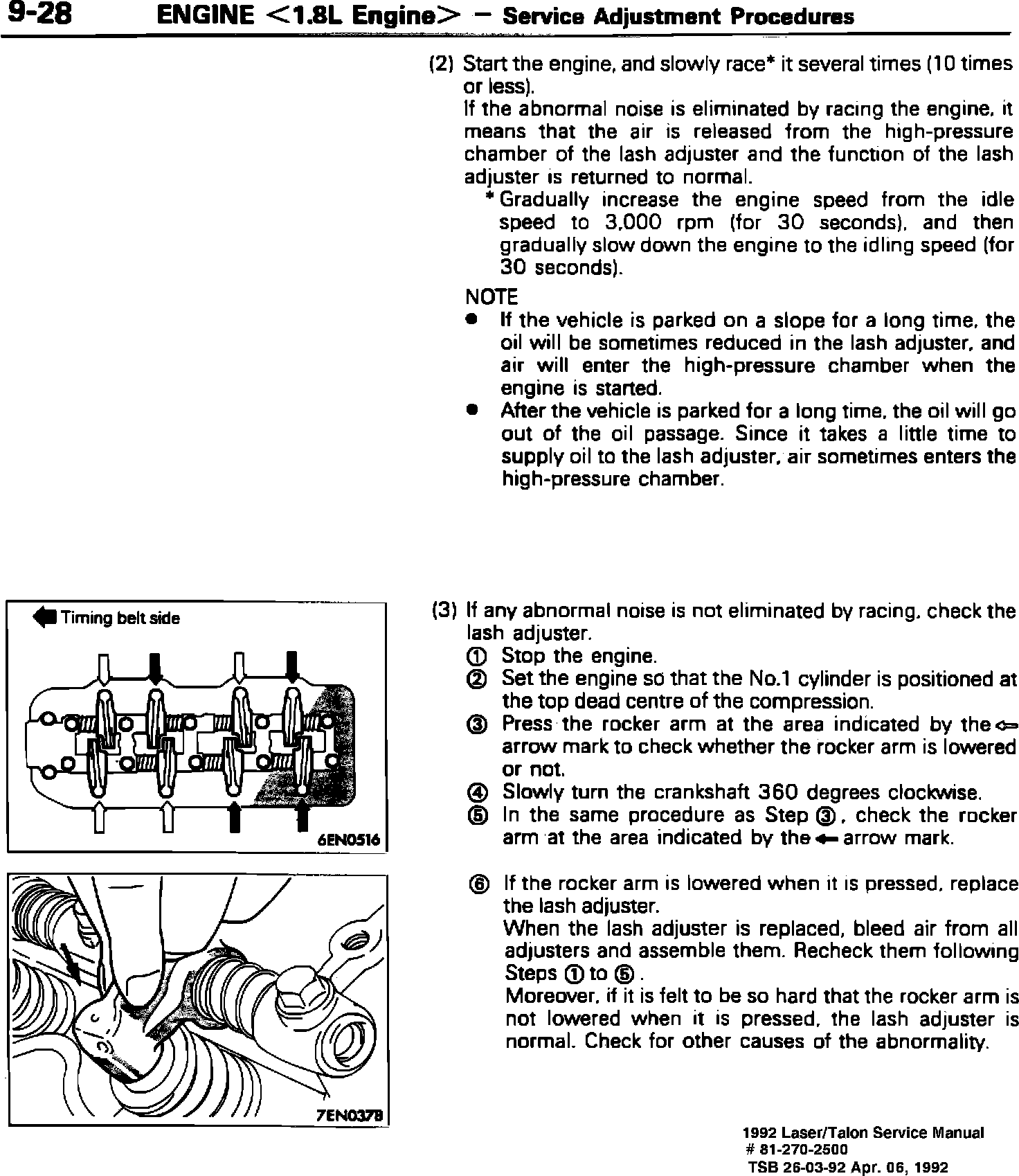

9-28 ENGINE <1.8L> - SERVICE ADJUSTMENT PROCEDURES

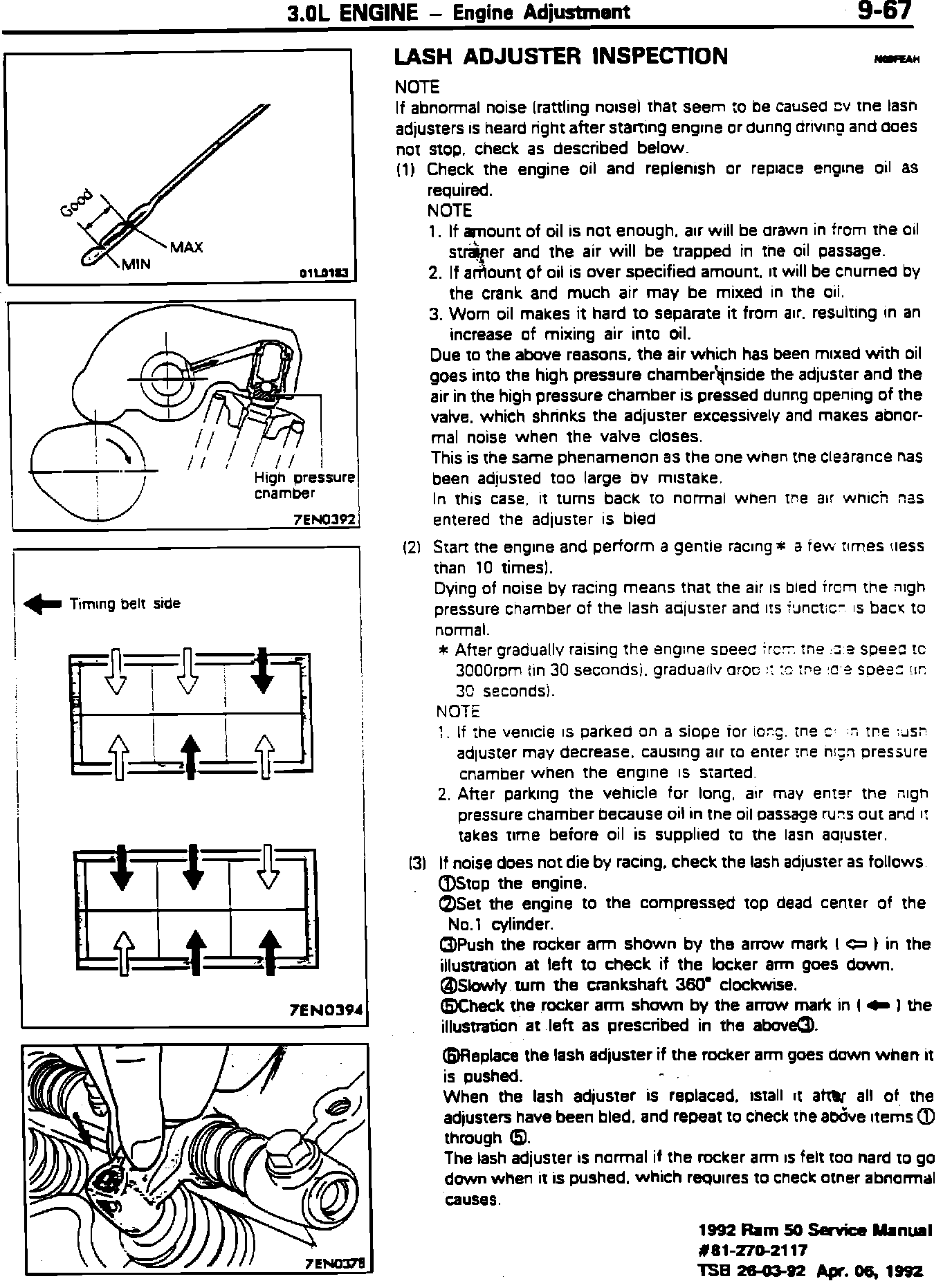

9-67 3.0L ENGINE - ENGINE ADJUSTMENT

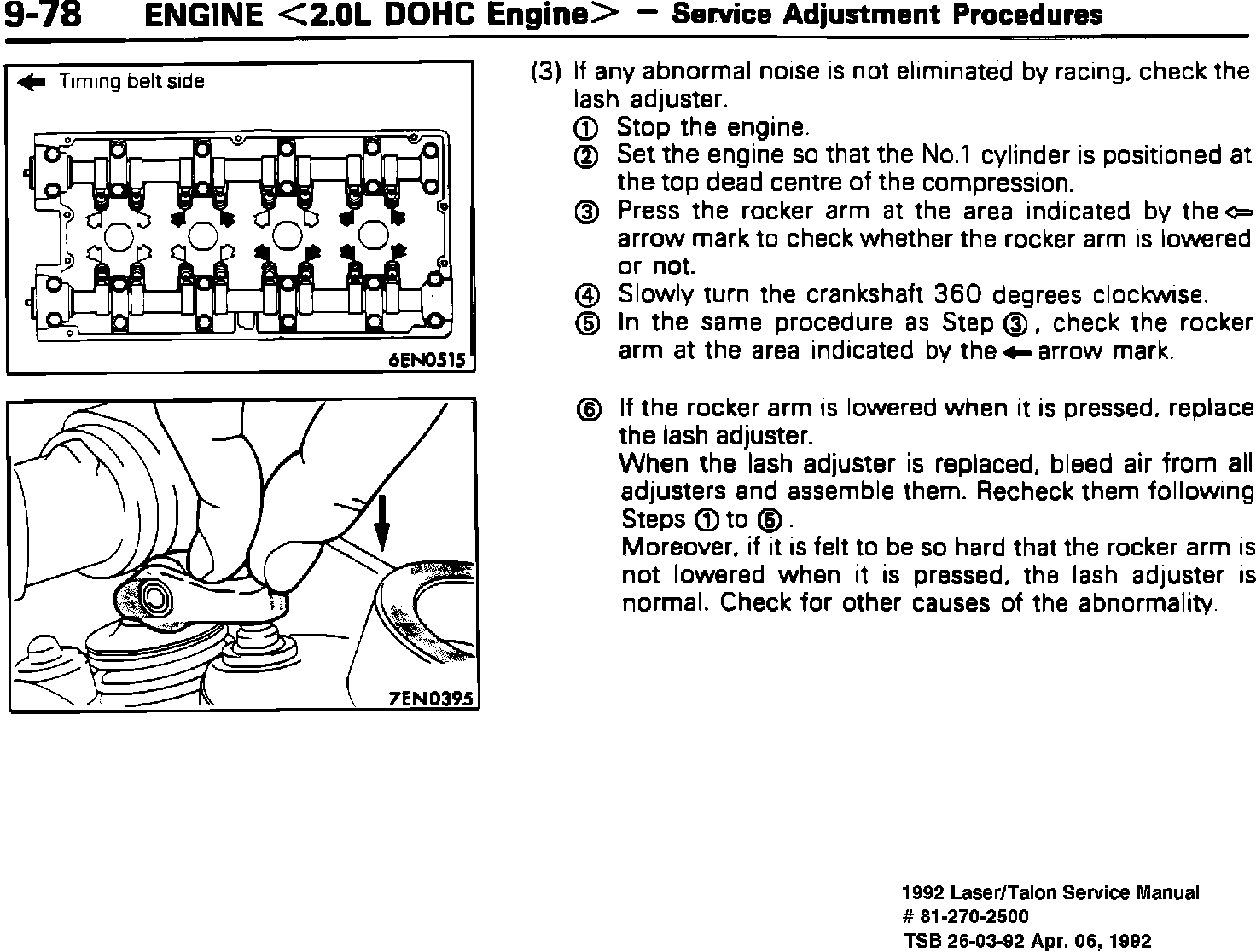

9-78 2.0L DOHC ENGINE - SERVICE ADJUSTMENT PROCEDURES

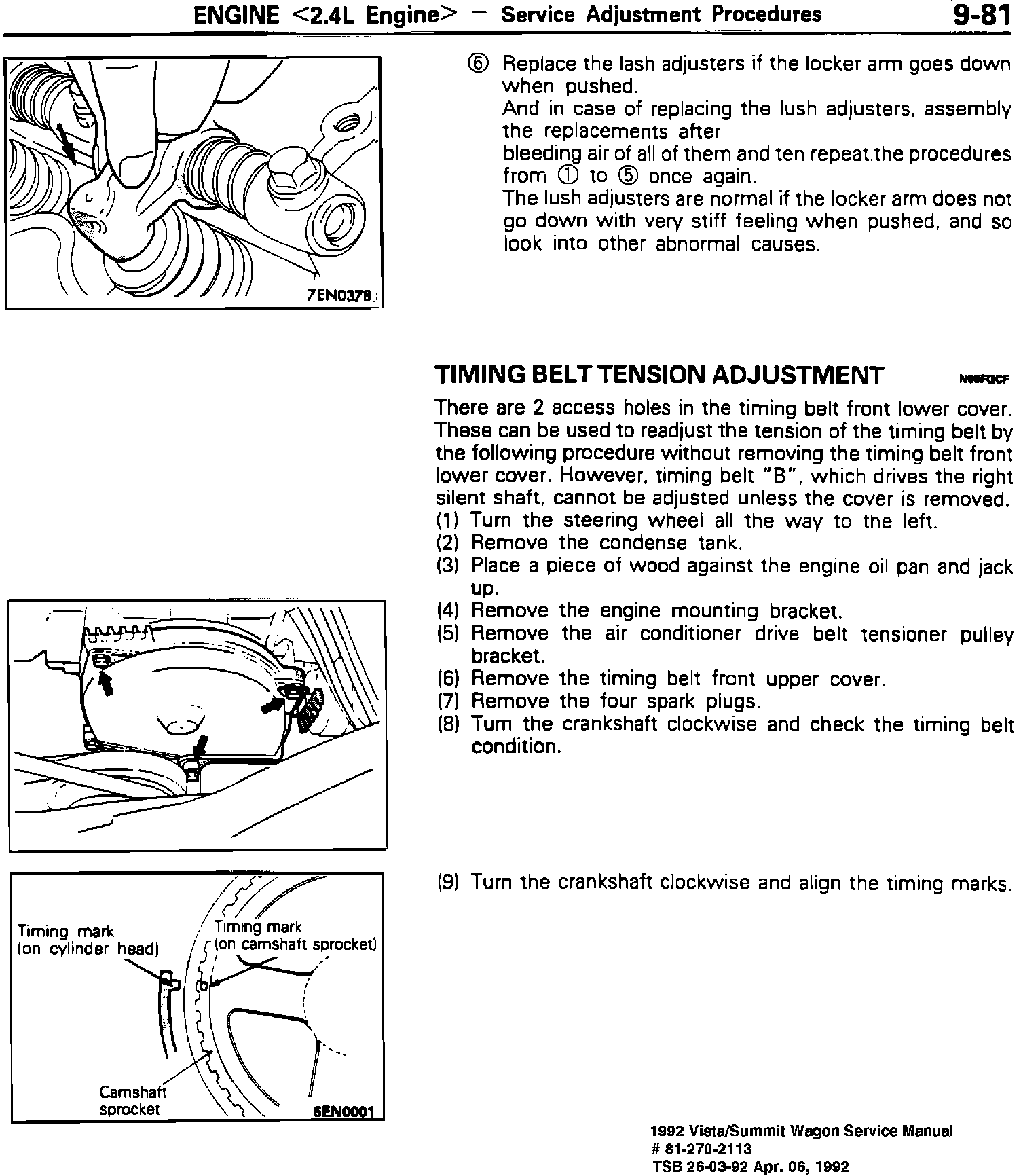

9-81 2.4L ENGINE - SERVICE ADJUSTMENT PROCEDURES

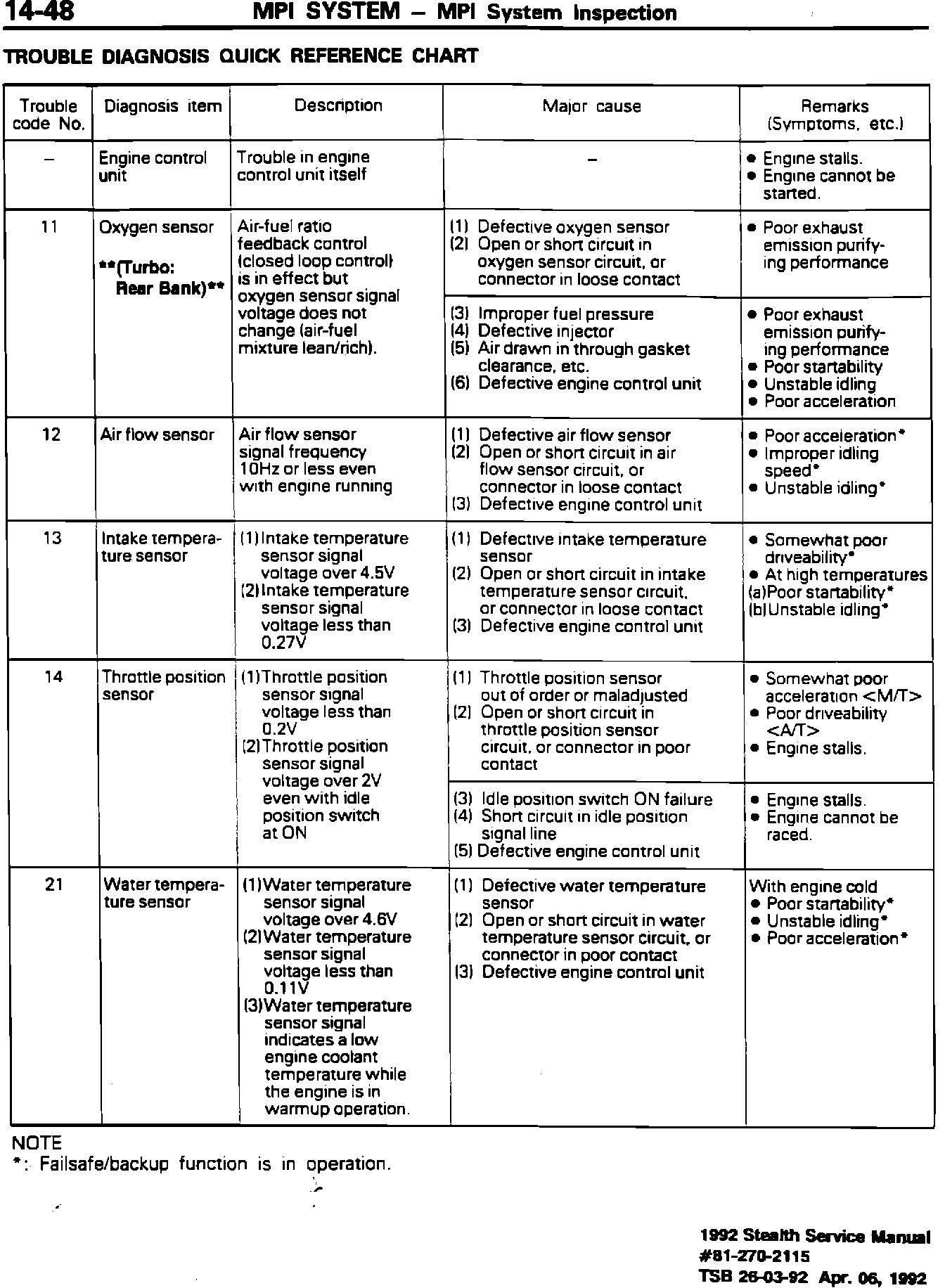

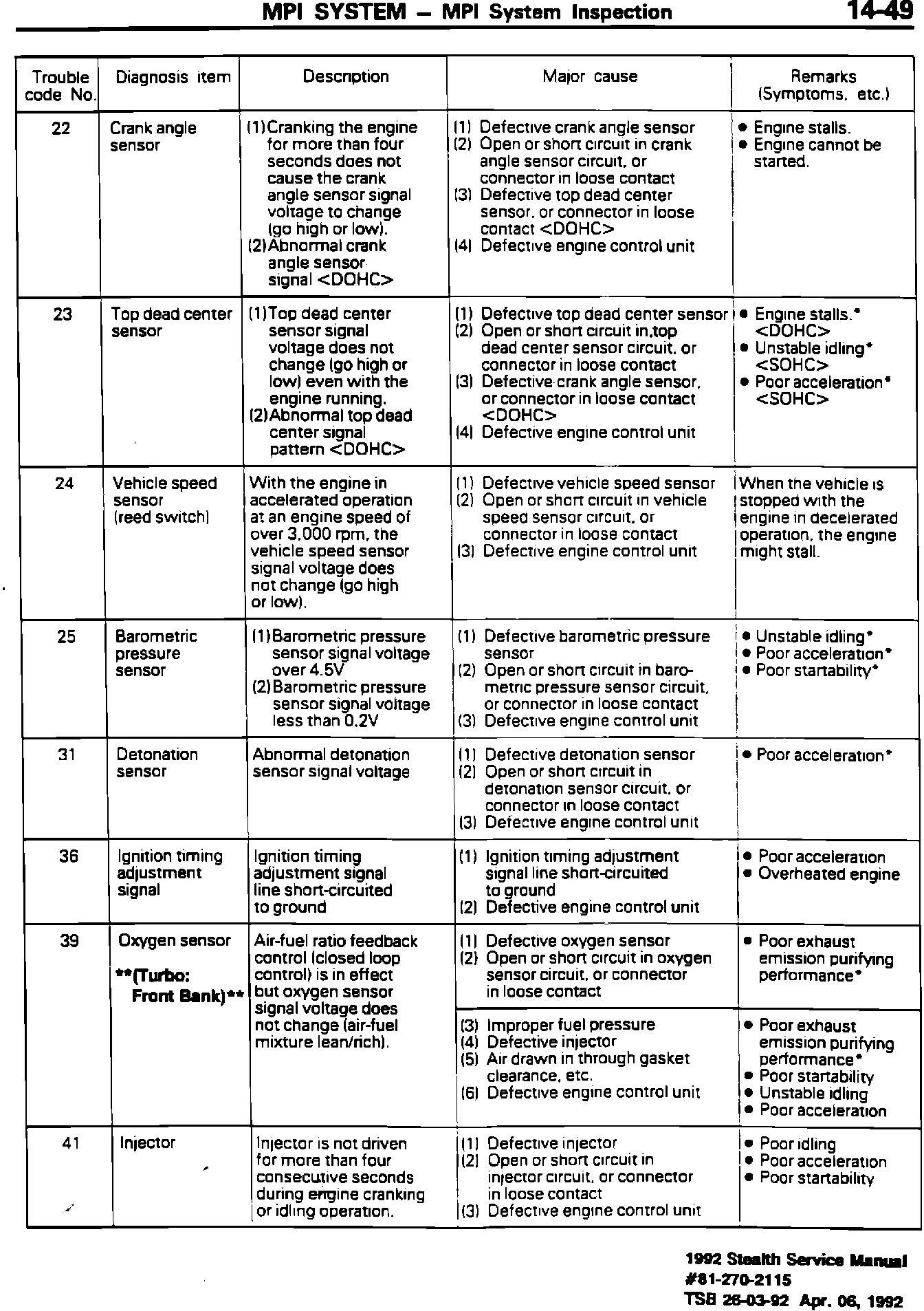

14-48, 49 MPI SYSTEM - MPI SYSTEM INSPECTION

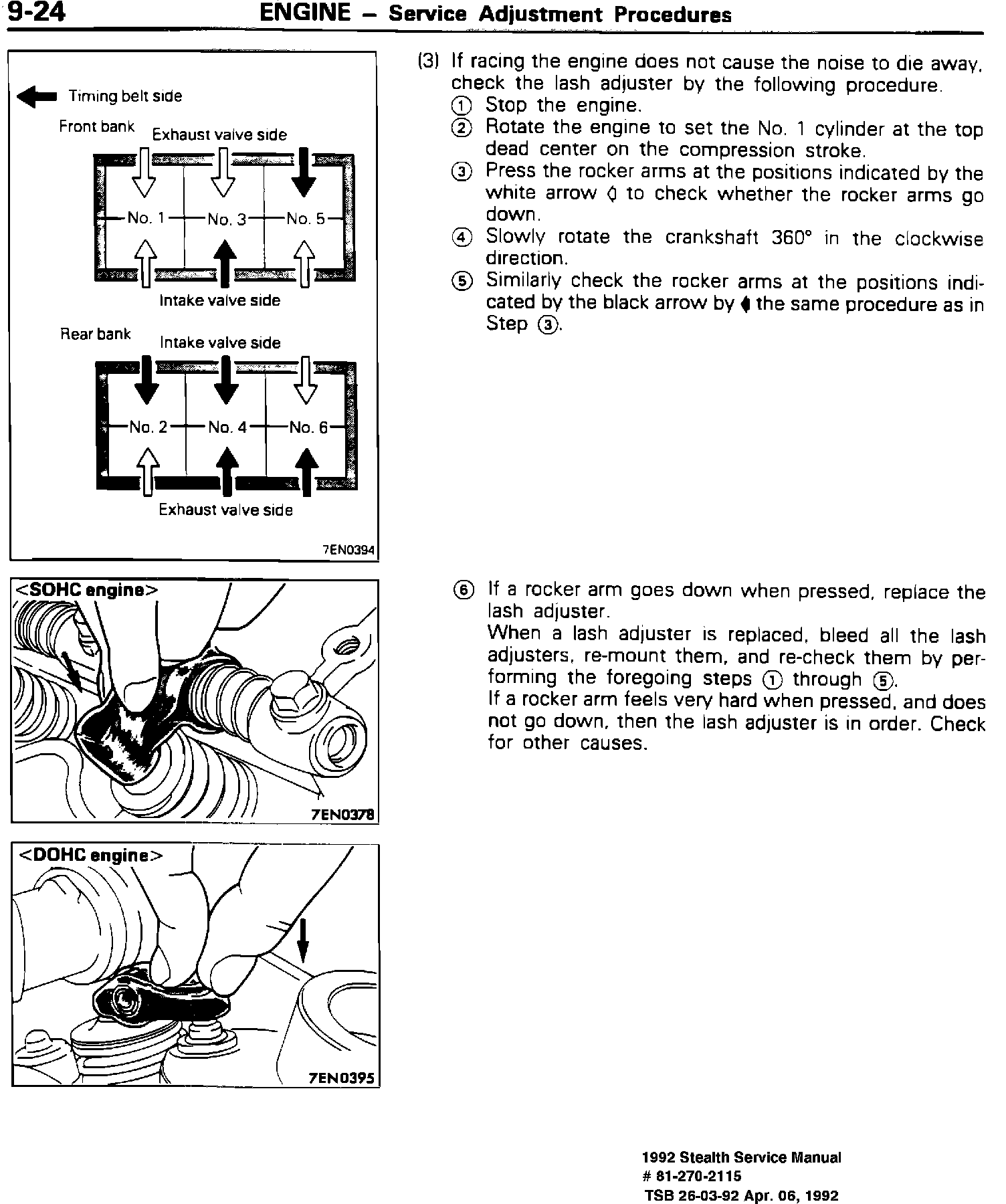

9-24 ENGINE - SERVICE ADJUSTMENT PROCEDURES
