Cruise Control - Troubleshooting Chart Correction

9227amcjeep01

NO.:
14-52-92

GROUP:
Fuel

DATE:
Feb. 10, 1992


SUBJECT:
Service Manual Revision - Troubleshooting Chart Correction


MODELS:
1991-1992 (BD) Talon





DISCUSSION:

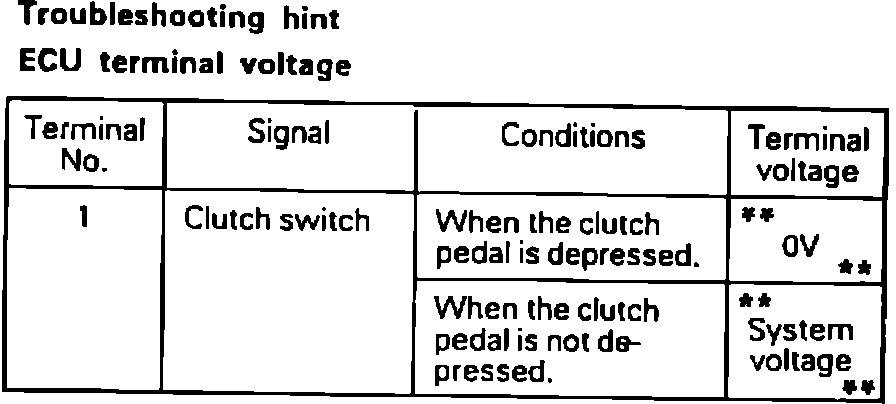

The Auto-Cruise Control System - Troubleshooting Chart in the 1991 and 1992 Laser/Talon Service Manuals is incorrect. The chart is shown in the manual.

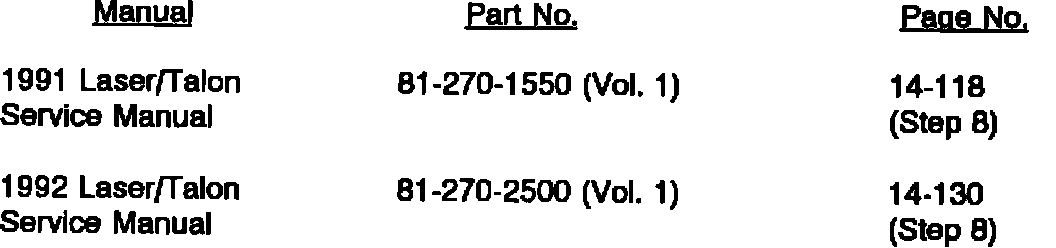

The corrections are printed in red and highlighted with asteriks (**) in the illustration and should be noted in the listed manuals.


POLICY:
Information only.
