Wheel Speed Sensor: Testing and Inspection

1. Ensure clearance between wheel speed sensor and the rotor is 0.012-0.035 inch.
2. Raise and support vehicle and release parking brake.

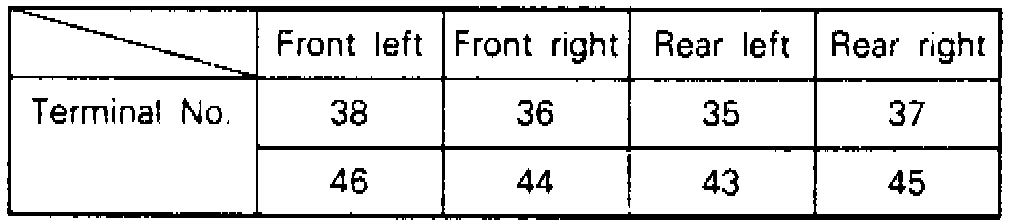

Fig 34 ABS ECU Wheel Speed Sensor Terminal Numbers:

3. Disconnect ABS ECU harness connector and measure from the harness side of connector.
4. Rotate wheel to be measured at approximately 1/2 to 1 rotation per second and check output voltage using a circuit tester. Ensure voltage indicated is 70 mV or more.
5. If voltage is lower than specified, inspect the following:
a. Excessive clearance between wheel speed sensor pole piece and the rotor.
b. Faulty wheel speed sensor.
6. Adjust or replace as necessary.
