Steering/Drivetrain - Power Steering/Hub Service Rev
NUMBER: 26-08-96J
GROUP: Miscellaneous
DATE: August, 1996
REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN
Models:
1994 Colt/Summit Wagon - Publication Number 81-270-4113
DESCRIPTION OF CHANGES
Revisions to the axle hub service procedures.

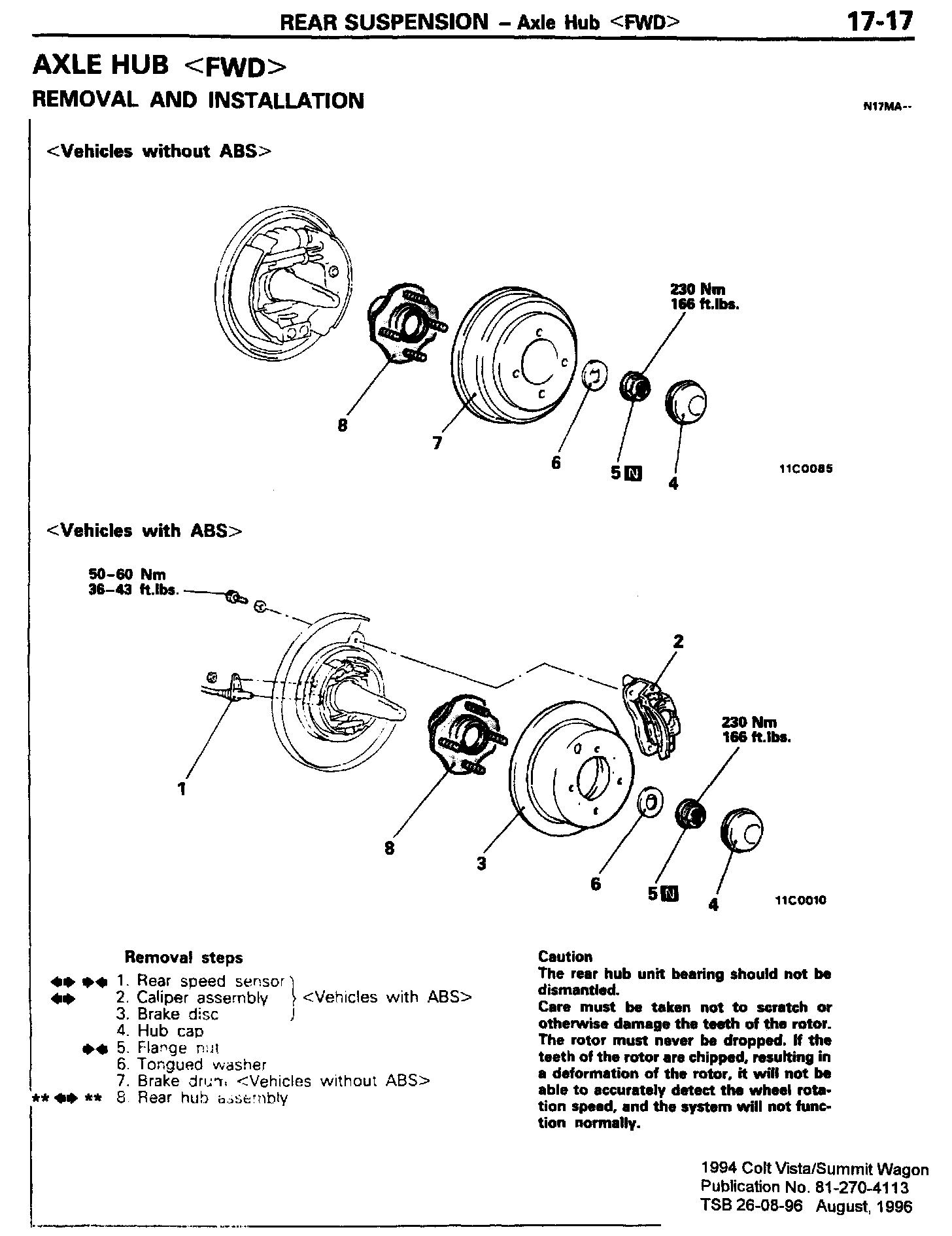

17-17

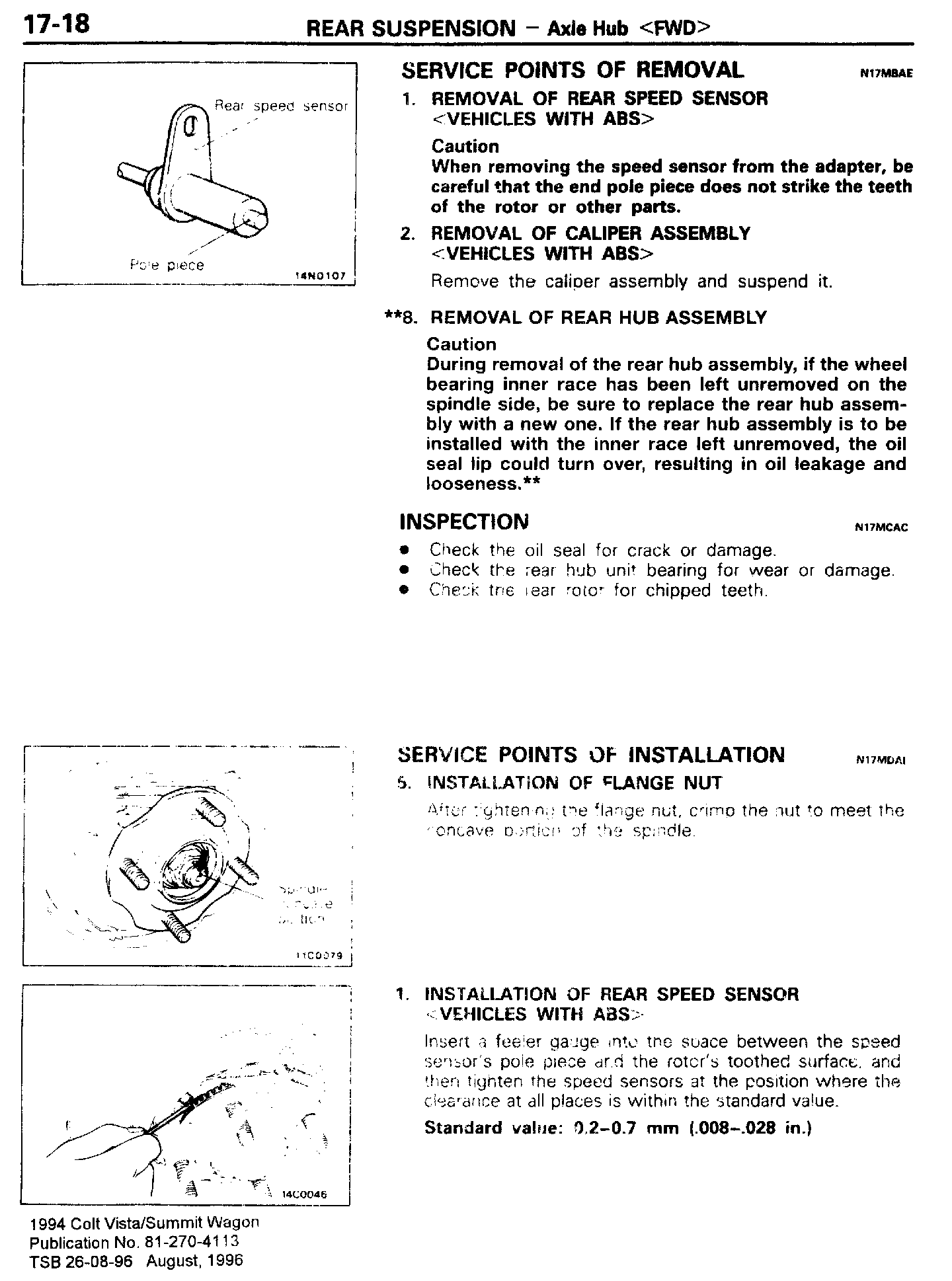

17-18
Revisions to the power steering system graphics.

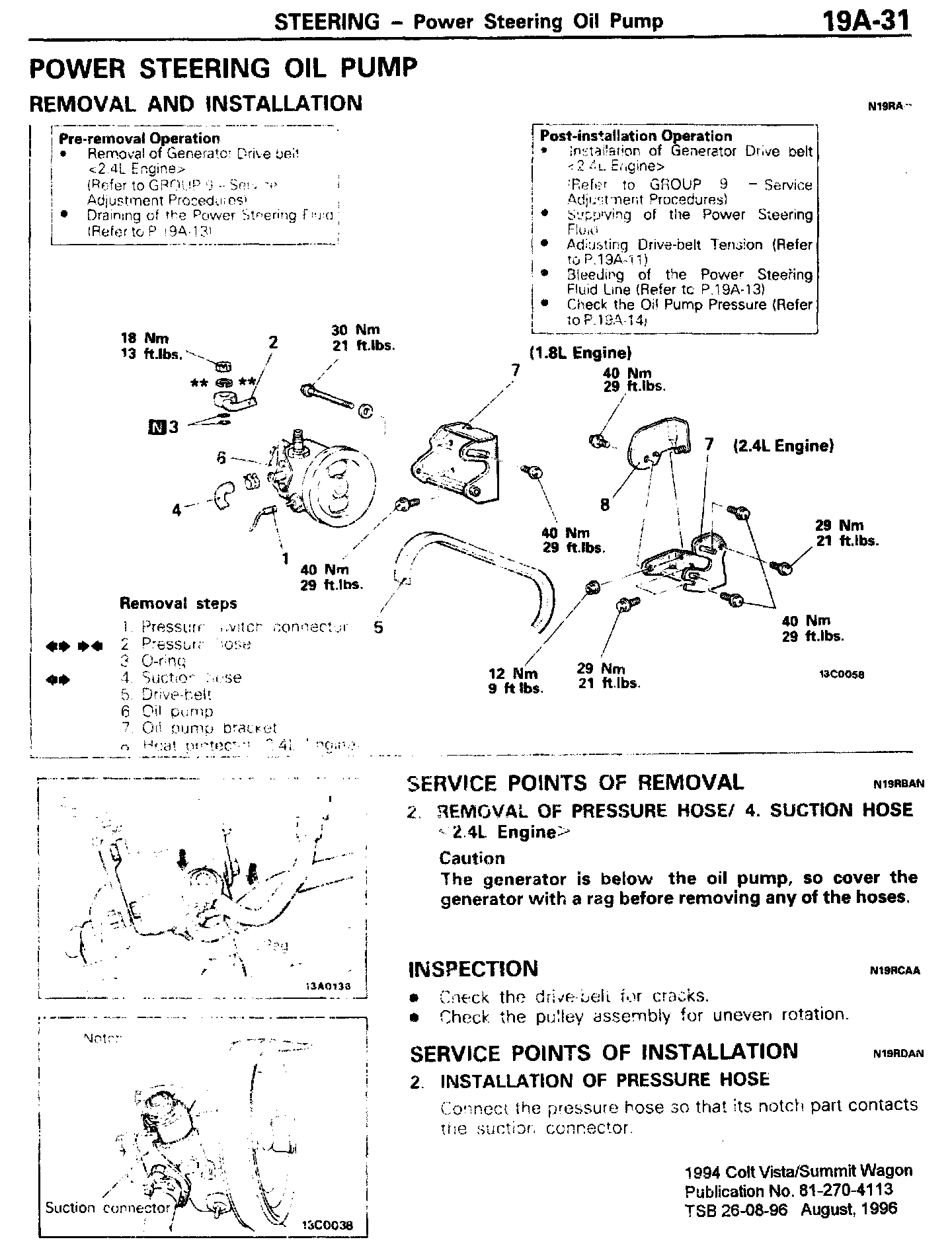

19A-31

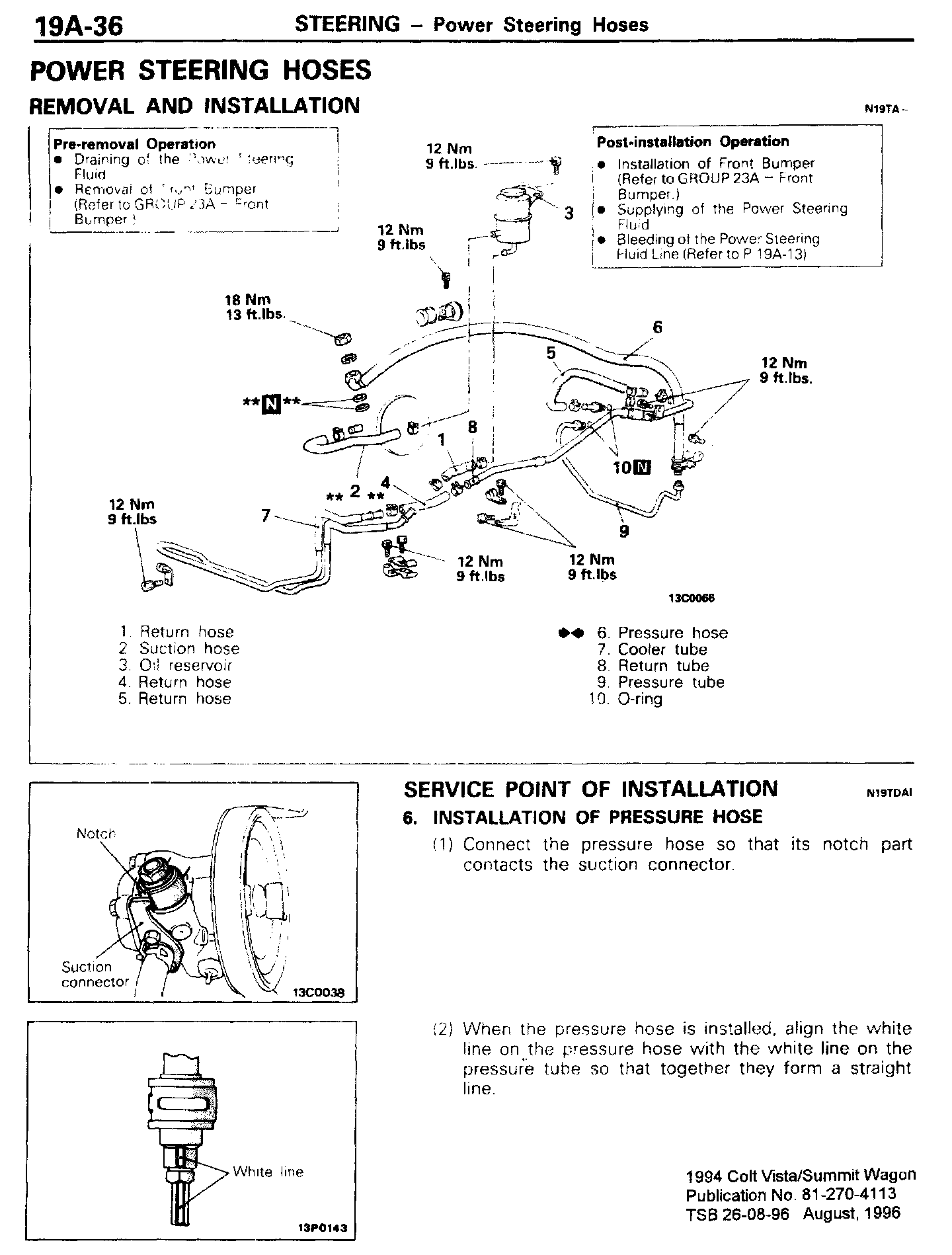

19A-36
