Intake Manifold: Service and Repair

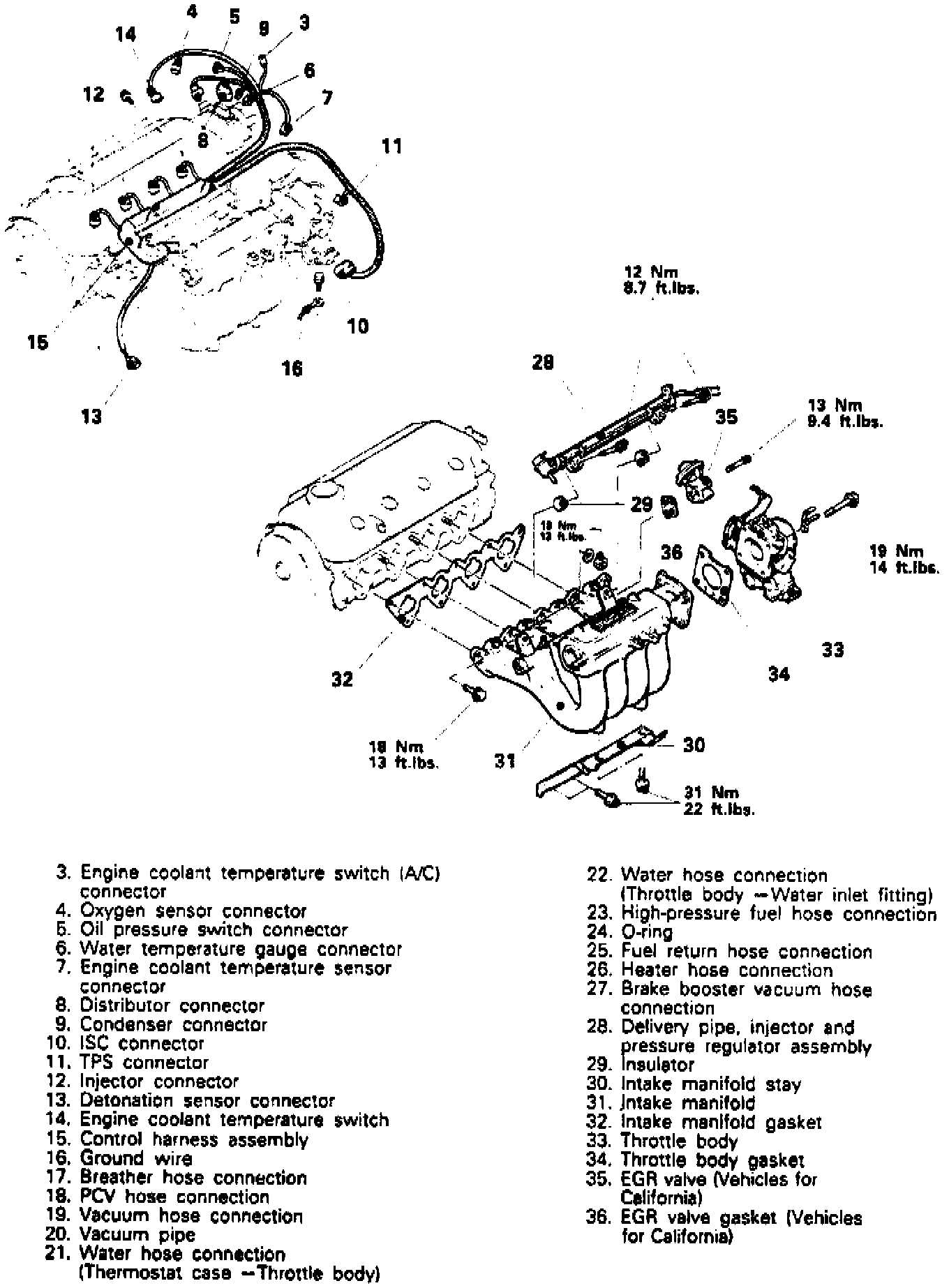

Fig. 8 Intake Manifold Removal (part 1 Of 2 ):

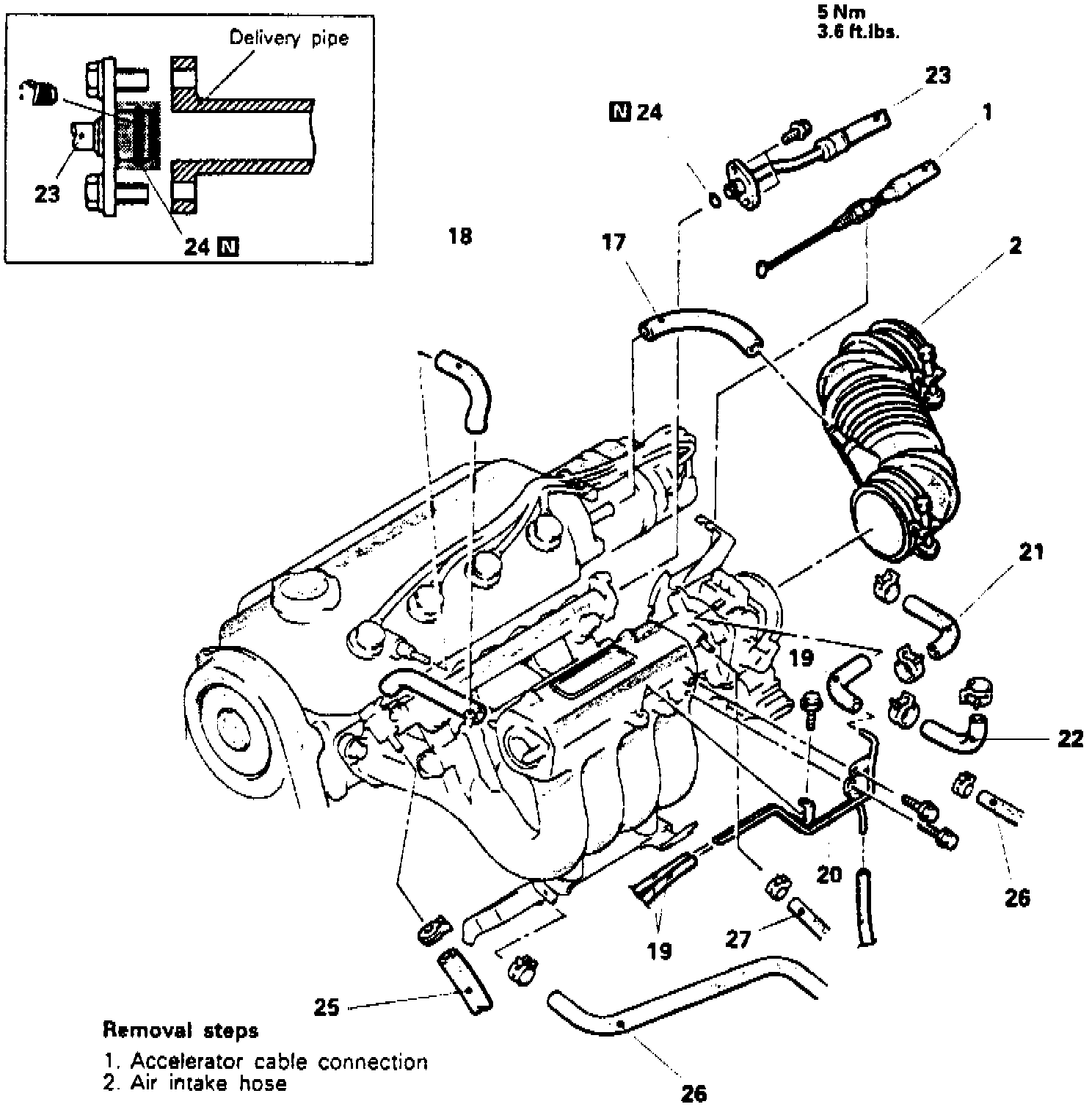

Fig.8 Intake Manifold Removal (part 2 Of 2 ):

INTAKE MANIFOLD REPLACE
1. Release fuel system pressure as outlined under Service Precautions. Service Precautions
2. Drain engine coolant into a suitable container.
3. Remove intake manifold in numbered sequence shown in Fig. 8 parts 1 and 2.
4. Remove fuel rail assembly with injectors and regulator attached.
5. Reverse procedure to install.
