Harness Inspection

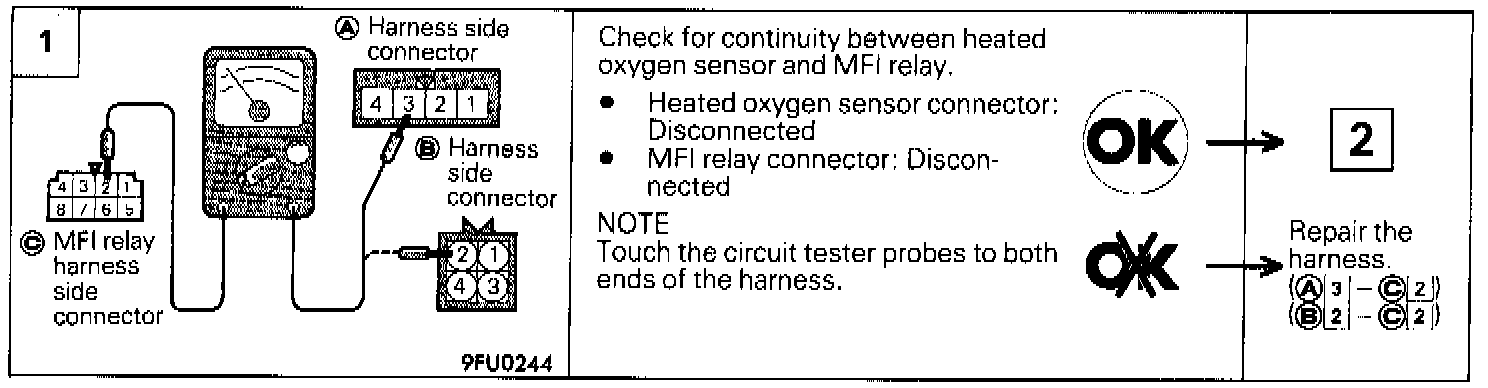

Step 1

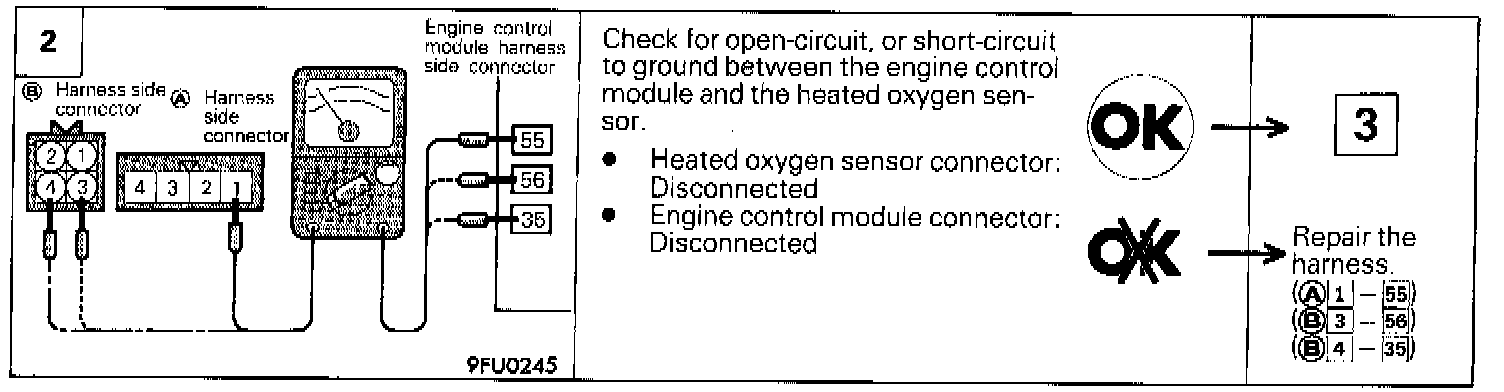

Step 2

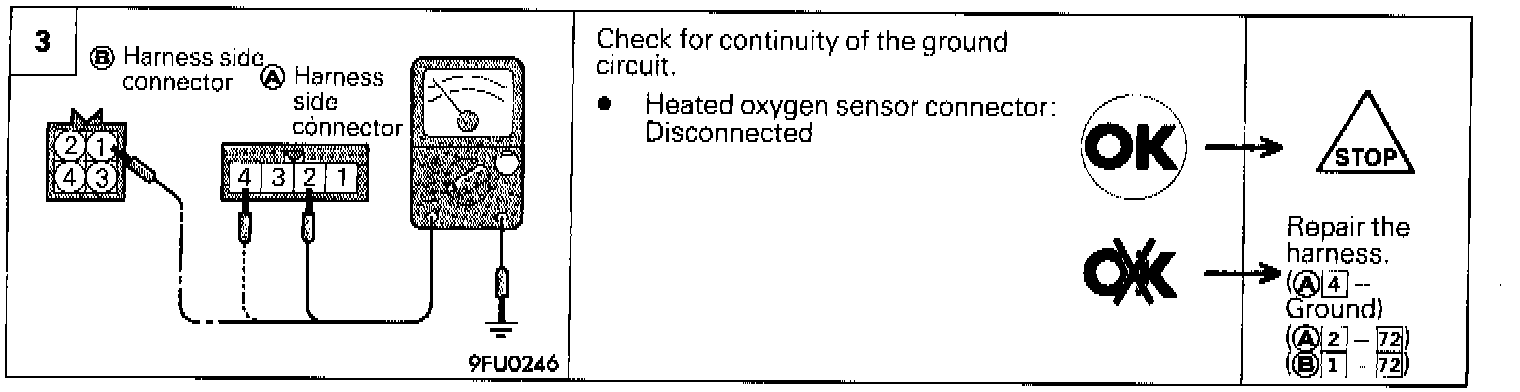

Step 3






TROUBLESHOOTING HINTS

Hint 1: The exhaust gas purification performance will worsen if there is a malfunction of the heated oxygen sensor.

Hint 2: If the heated oxygen sensor output~voltage deviates from the standard value even though the results of the checking of the heated oxygen sensor are normal, the cause is probably a malfunction of a component related to mixture control.

Examples

1. Malfunction of an injector.

2. Air leakage into the intake manifold from a leaking gasket.

3. Malfunction of the intake air temperature sensor, the manifold absolute pressure sensor, or the engine coolant temperature sensor.
