No Fail Safe Code (No Shift Made)

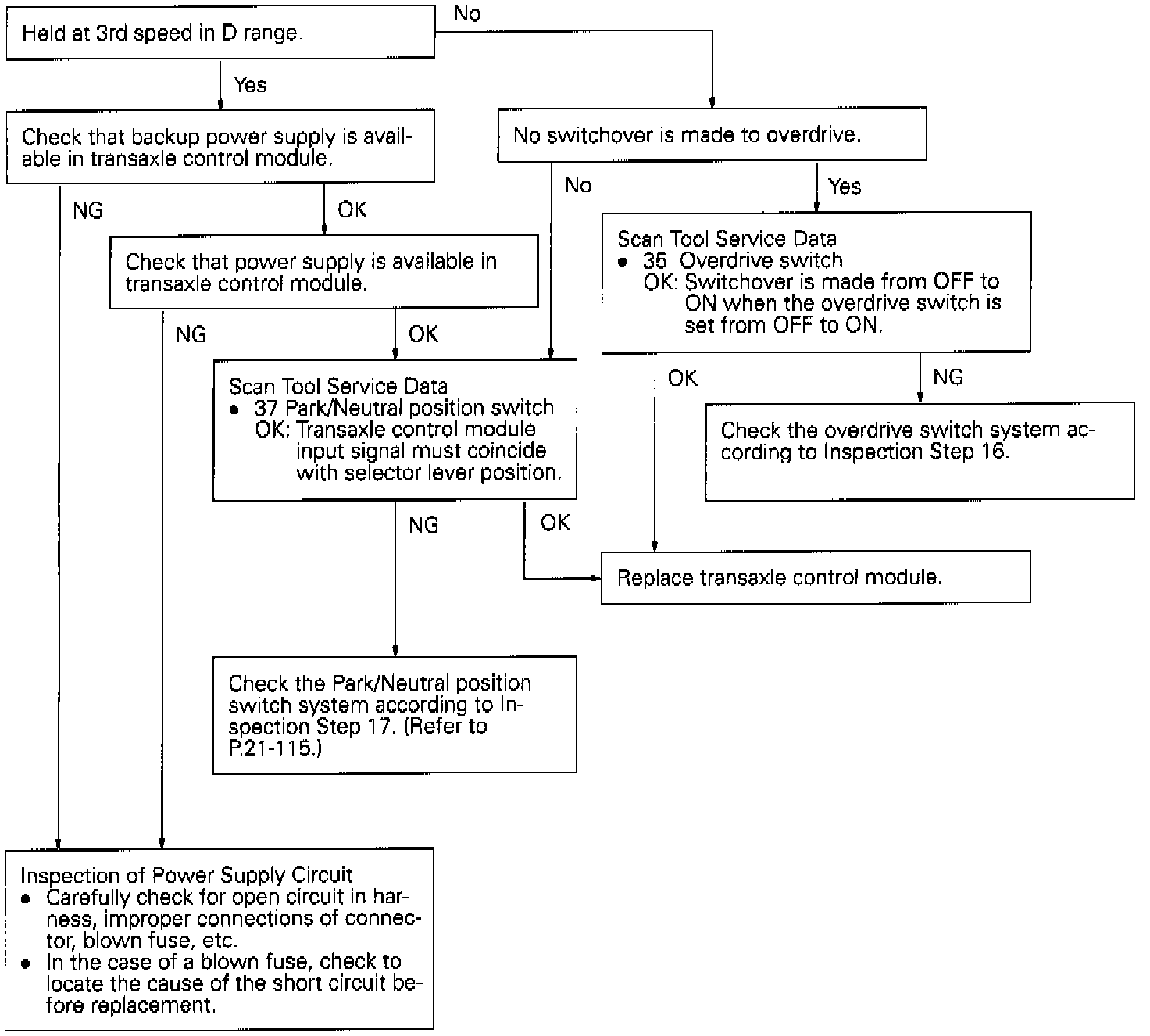

Inspection Step 13


Description

No shift is made during operation. No fail safe code is output. In this case, a defective overdrive switch, Park/Neutral position switch, etc. are suspected.


Probable Cause of Trouble

- Defective overdrive switch
- Defective Park/Neutral position switch
- Defective power supply circuit
- Defective transaxle control module
