Start Failure (Will Not Start)

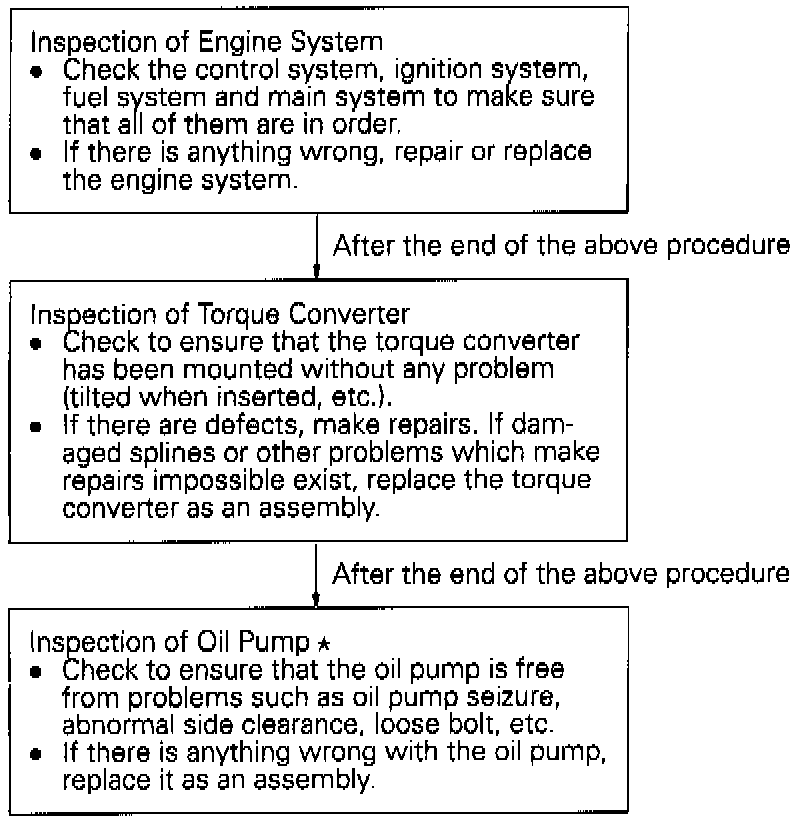

Inspection Step 2
Description When the engine fails to start with the selector lever at positions P and N, it is likely that the engine system, torque converter and/or oil pump is out of order.
Probable Cause of Trouble -
Defective engine system
-
Defective torque converter
-
Defective torque converter clutch
-
Defective oil pump
