Alternator Brush: Service and Repair

Brush Replacement - Step (1):

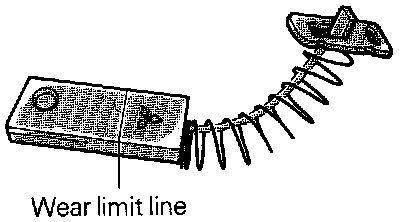

1. Replace brush by the following procedures if it has been worn to limit line.

Brush Replacement - Step (2):

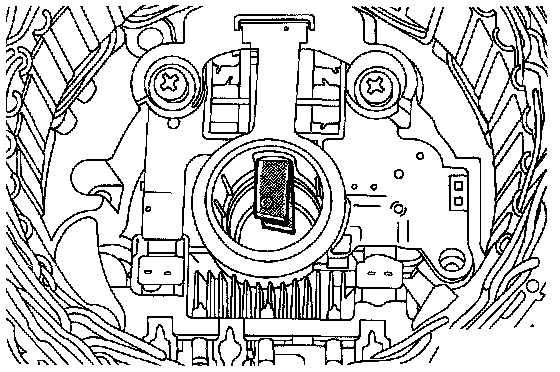

2. Unsolder the lead wire of the brush, and the brush will appear.

Brush Replacement - Step (3):

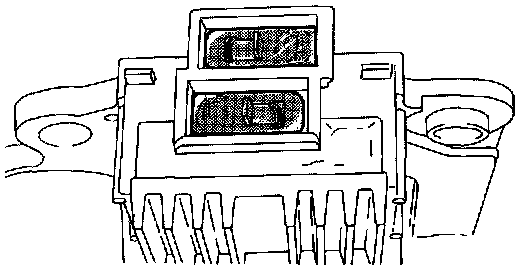

3. To install a new brush, insert the brush in the holder until it is positioned as illustrated, and solder the lead wire.
