Automatic Transmission

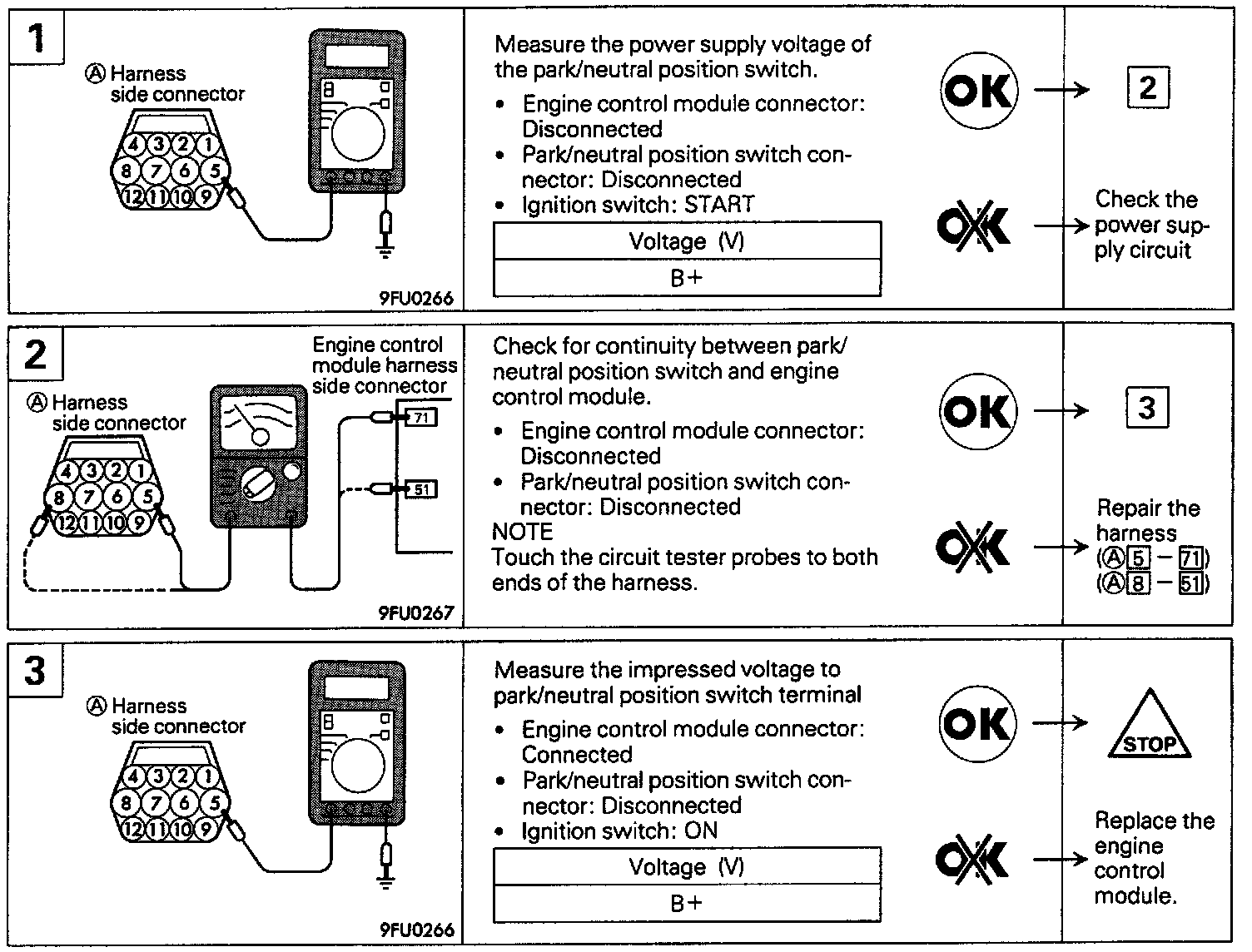

TROUBLESHOOTING HINTS If the
park/neutral position switch harness and individual part check have resulted normal but the park/neutral position switch output is abnormal, check control cable adjustment.
Ignition Switch Input To ECM:
HARNESS TESTINGSCANTOOL TESTINGAutomatic Transmission:
Code 18 Switch StateIgnition Switch Input To ECM:
Code 29 Shift Position
