Service Point of Removal

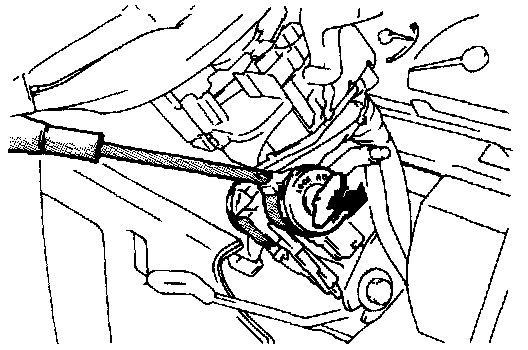

Removal Of The Steering Lock Cylinder:

REMOVAL OF THE STEERING LOCK CYLINDER
1. Insert the key in the steering lock cylinder and turn it to the "ACC" position.

2. Using a cross-tip (+) screwdriver (small) or a similar tool, push the lock pin of the steering lock cylinder inward and then pull the steering lock cylinder toward you.

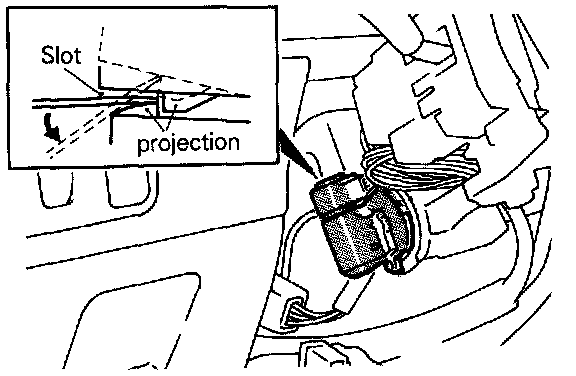

Removal Of The Key Remindner Switch:

REMOVAL OF THE KEY REMINDER SWITCH
Insert a standard screwdriver or similar tool in the slot and pry out the projection as indicated by an arrow to remove the connector.
