Alternator: Service and Repair

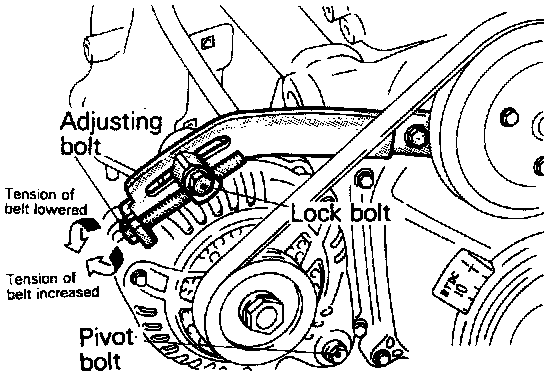

Removal Of Drive Belt (Generator):

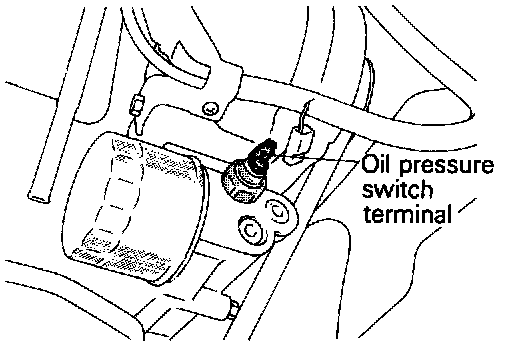

Oil Pressure Switch Terminal:






1. REMOVAL OF DRIVE BELT (GENERATOR)
a. Loosen the nut of the pivot bolt and the lock bolt as shown in the illustration.
b. Loosen the adjusting bolt to lift it upward.
c. While pushing the generator toward the engine, remove the drive belt (Generator).

2. REMOVAL OF GENERATOR
Pull out the generator to the lower side of the vehicle.
NOTE:
Remove the terminal beforehand so as not to break the terminal of the oil pressure switch.

3. REMOVAL OF WATER PUMP PULLEY INSTALLATION BOLT
In order to make it easy to remove the water pump pulley. loosen beforehand the pulley mounting bolt with the belt attached.
