Reed Switch Operation Test
Reed Switch:

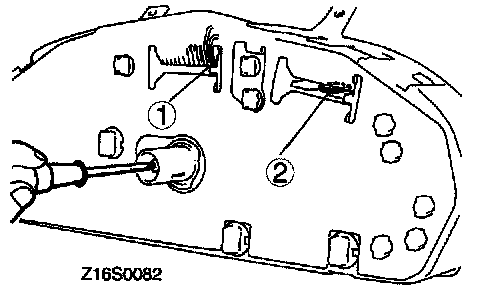

Using an ohmmeter, check that continuity and discontinuity alternates between terminals 1 and 2 four times at every rotation of the shaft of the speedometer cable connection.
Using an ohmmeter, check that continuity and discontinuity alternates between terminals 1 and 2 four times at every rotation of the shaft of the speedometer cable connection.
