Cable Resistance Test

Spark Plug Cable Inspection:





1. Check cap and coating for cracks.

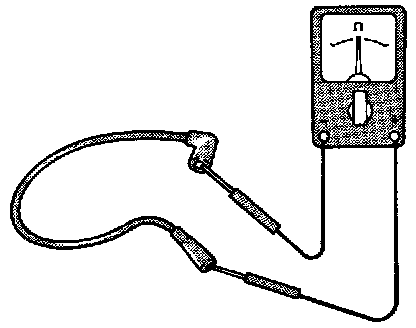

2. Measure resistance.

Limit: Max. 22 K Ohms
