Fuel Injector

Injector #1 Connector:



Injector #2 Connector:



Injector #3 Connector:

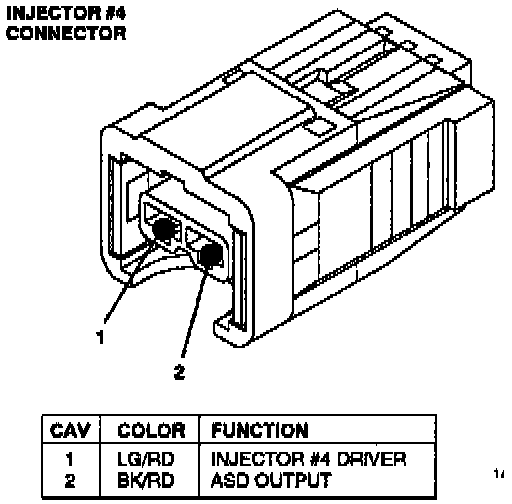

Injector #4 Connector:
