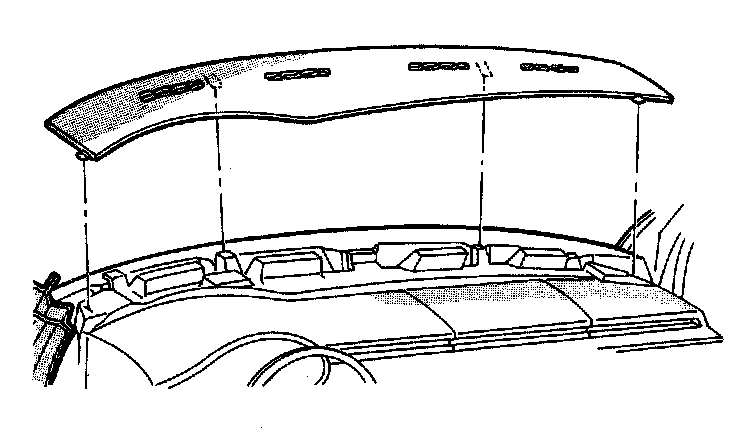

Instrument Panel Top Cover Replacement

1. Using a trim stick, pry-up each end of top cover disengaging clips.

2. Lift rear edge of top cover using straight edge along rear edge.

3. Lift rear edge and slide top cover rearward disengaging clips to remove cover.

4. For installation, reverse above procedures. Ensure the two center clips are engaged first. Place thumb in VIN opening and pull towards pad to ensure VIN alignment.
